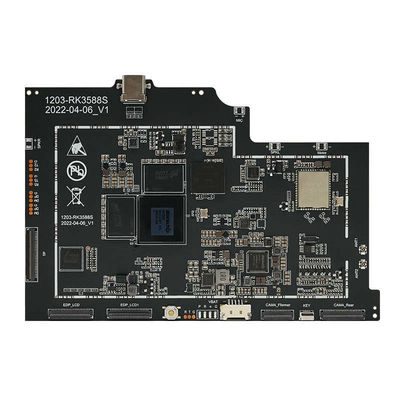

Multilayer Electronics PCBA Printed Circuit Board Assembly High Density Wiring Board For Tablet

Multilayer Electronics PCBA Printed Circuit Board Assembly High Density Wiring Board For Tablet

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Detail Information
Layer:
12L
Base Material:
FR4
Min. Component Size:
0201
PCB Thickness:
1.5mm
Pin Space:
0.1mm
Surface Finish:
HASL
Testing Method:
Flying Probe, ICT, Functional Test,AOI
Application:
Tablet
Highlight:

Multilayer pcba printed circuit board assembly

,

Tablet pcba printed circuit board assembly

,

High Density pcba electronics

Product Description

Multilayer High Density Wiring Board Electronic PCBA Tablet PCBA



What is Consumer Electronics PCBA?



Consumer Electronics PCBA (Consumer Electronics Printed Circuit Board Assembly) is the core circuit board of consumer electronic products (such as mobile phones, TVs, headphones, etc.). Components are integrated on the PCB through SMT patch and DIP plug-in processes to achieve device function control and data processing.



Features of Tablet PCBA

    • Highly integrated: integrates main control, communication, storage and other modules to achieve multi-function integration.

    • Lightweight design: compact layout and advanced packaging, suitable for ultra-thin body.

    • Efficient power supply: intelligent battery management, optimized battery life and charging.

    • Heat dissipation optimization: efficient thermal conductivity design to ensure long-term stable operation.

    • Strong signal: optimize RF circuit to ensure stable network connection.

    • Flexible customization: support function and performance adjustment on demand.



Applications of Consumer Electronics PCBA

    • Mobile phones/tablets: integrated chips, communication modules, support high-performance computing and portable design.
    • Computers/laptops: motherboard core, carrying processors, memory and multi-interface functions.
    • Audio-visual equipment: signal processing and interactive control of TVs, game consoles, and speakers.
    • Smart home: communication and logic control of smart speakers, thermostats and other devices.
    • Wearable devices: miniaturized and highly integrated solutions for smart watches and health monitoring equipment.
    • Photographic imaging: image processing and storage control of cameras and camcorders.
    • Home appliances: functional realization of smart home appliances such as microwave ovens and washing machines.



♦ DQS's PCB Assembly Capability





Item



Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

     T>2mm







♦ One-Stop Electronic Manufacturing Including



 PCB Prototype

Quick Turn PCB

Single-Sided PCB

Double-Sided PCB

 Multilayer PCB

Rigid PCB

Flexible PCB

Rigid-Flex PCB Rigid-Flex PCB Aluminum PCB Metal Core PCB

Thick Copper PCB

HDI PCB

BGA PCB High TG PCB PCB Stencil Impedance Control PCB

PCB Assembly

High-Frequency PCB Bluetooth Circuit Board Automotive PCB USB Circuit Board Halogen-Free PCB

Antenna PCB





Core Competencies of DQS PCB Assembly



SMT

Multilayer Electronics PCBA Printed Circuit Board Assembly High Density Wiring Board For Tablet 0

DIP

Multilayer Electronics PCBA Printed Circuit Board Assembly High Density Wiring Board For Tablet 1

  • 13 automatic high-speed SMT line
  • 5 million points / day
  • FPC/Double sided mounted
  • Automatic conformal coating
  • 4 DIP line
  • Post-soldering700,000 points/day
  • Professional DIP plug-in team
Multilayer Electronics PCBA Printed Circuit Board Assembly High Density Wiring Board For Tablet 2 SMT Technology Multilayer Electronics PCBA Printed Circuit Board Assembly High Density Wiring Board For Tablet 3 PCBA OEM
  • Min package: 01005
  • Min pin: 0.3mm
  • Min BGA pitch: 0.3 mm



  •  Full turnkey PCB assembly
  • Partial turnkey PCB assembly
