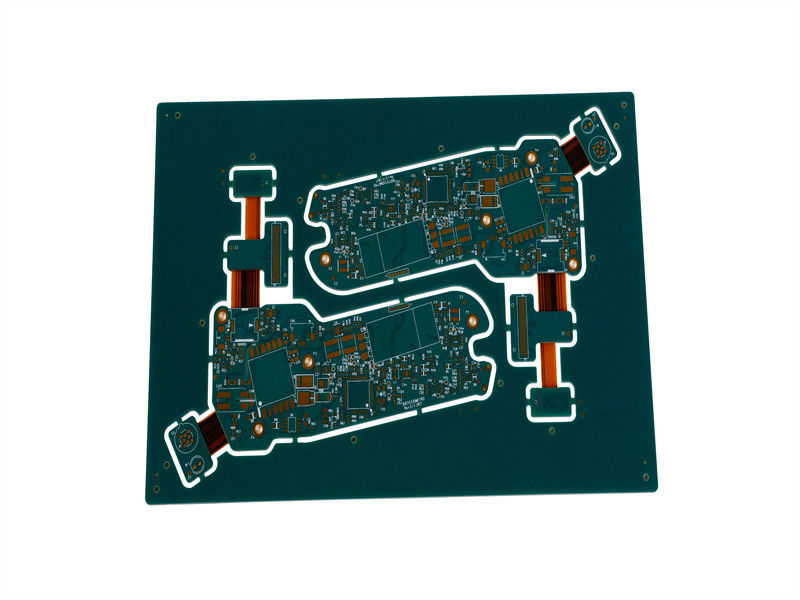

Multilayer Blue Fast Turn Flex PCB Assembly High Density Circuit Board Manufacturing

Multilayer Blue Fast Turn Flex PCB Assembly High Density Circuit Board Manufacturing

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Supply Ability: 200,000+ m² PCB per Month
Detail Information
Layer:
8 Layer
Board Thickness:
3.2mm+/-10%,Flex:0.26+/-0.05mm
Copper Thickness:
1OZ
Material:
Polyimide+FR4
Color:
Blue
Min. Line Width/Space:
0.13/0.13mm
Min. Hole Size:
0.1mm
Surface Treatment:
ENIG 2U"
Application:
Medical Devices
Supply Ability:
200,000+ m² PCB per Month
Highlight:

Multilayer fast turn flex pcb

,

High Density fast turn flex pcb

,

Multilayer flex pcb assembly

Product Description



Rigid-Flex PCB Blue Board High Density Multilayer PCB  Manufacturing





♦ What is Rigid-Flex PCB?




Rigid-Flex PCB is a composite structure circuit board that combines a rigid printed circuit board (PCB) and a flexible circuit board (FPC). It is mainly composed of two parts: rigid and flexible. The rigid layer is made of traditional PCB materials (such as FR-4), providing stable electrical performance and mechanical strength; the flexible layer is made of flexible circuit materials such as polyimide or polyester, which has high bending and folding resistance; the two are connected by special adhesives or welding processes.





Multilayer Blue Fast Turn Flex PCB Assembly High Density Circuit Board Manufacturing 0 Multilayer Blue Fast Turn Flex PCB Assembly High Density Circuit Board Manufacturing 1 Multilayer Blue Fast Turn Flex PCB Assembly High Density Circuit Board Manufacturing 2







Features of Rigid-Flex PCB

    • ​​Rigid-flexible combination, flexible design​​: The rigid part provides stable support to ensure the stability of core components (such as chips and interfaces); the flexible part can be bent and folded to adapt to complex spatial layouts, replacing traditional cables or connectors.

    • Space saving, thin and compact​​: The flexible part replaces cables and connectors, reduces the space occupied inside the device, and helps the device to be thinner (such as folding screen mobile phones and wearable devices).

    • ​High reliability and bending resistance​​: The flexible part can withstand hundreds of thousands of bends (lifespan of millions of times), adapt to dynamic scenes (such as robot joints and automotive wire control systems), and avoid the risk of fracture of traditional welding points.





Applications of Rigid-Flex PCB



    • ​​Consumer electronics​​: smartphones (internal connections of folding screens), wearable devices (circuits inside smartwatch straps), tablet computers (circuit boards at hinges);
    • Industrial and medical​​: industrial sensors (detection modules that need to be bent and installed), medical implants (internal circuits of pacemakers), avionics equipment (control modules that need to resist vibration);
    • Automobile and transportation​​: battery management systems for new energy vehicles (BMS, adapted to complex battery pack layouts), on-board displays (foldable or curved screen connections), autonomous driving sensors (dynamic bending requirements);
    • ​Military and aerospace​​: satellite communication equipment (needs to be lightweight and radiation-resistant), aircraft control circuit boards (adaptable to high-vibration environments).





Technical Parameters



Item

Spec

Layers

1~64

Board Thickness

0.1mm-10 mm

Material

FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base,Ceramic, etc

Max Panel Size

800mm×1200mm

Min Hole Size

0.075mm

Min Line Width/Space

Standard: 3mil(0.075mm)  Advance: 2mil

Board Outline Tolerance

士0.10mm

Insulation Layer Thickness

0.075mm--5.00mm

Out Layer Copper Thickness

18um--350um

Drilling Hole (Mechanical)

17um--175um

Finish Hole (Mechanical)

17um--175um

Diameter Tolerance (Mechanical)

0.05mm

Registration (Mechanical)

0.075mm

Aspect Ratio

17:01

Solder Mask Type

LPI

SMT Min. Solder Mask Width

0.075mm

Min. Solder Mask Clearance

0.05mm

Plug Hole Diameter

0.25mm--0.60mm




One-Stop PCBs Solution



Multilayer Blue Fast Turn Flex PCB Assembly High Density Circuit Board Manufacturing 3 Multilayer Blue Fast Turn Flex PCB Assembly High Density Circuit Board Manufacturing 4 Multilayer Blue Fast Turn Flex PCB Assembly High Density Circuit Board Manufacturing 5 Multilayer Blue Fast Turn Flex PCB Assembly High Density Circuit Board Manufacturing 6
PCB Prototype Felx PCB  Rigid-Flex PCB Ceramic PCB
Multilayer Blue Fast Turn Flex PCB Assembly High Density Circuit Board Manufacturing 7 Multilayer Blue Fast Turn Flex PCB Assembly High Density Circuit Board Manufacturing 8 Multilayer Blue Fast Turn Flex PCB Assembly High Density Circuit Board Manufacturing 9 Multilayer Blue Fast Turn Flex PCB Assembly High Density Circuit Board Manufacturing 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB






Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
