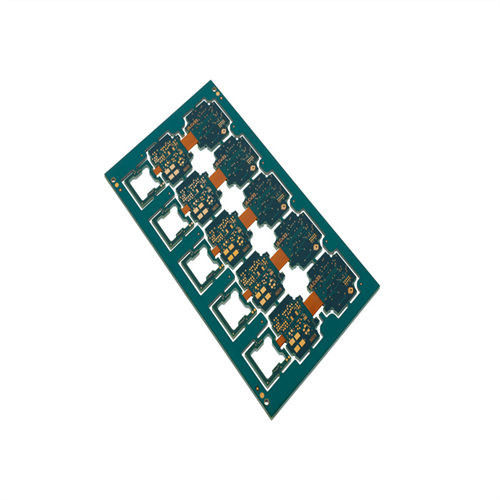

Lightweight Rigid Flex Printed Wiring Board PCB Motherboard For Smartwatch

Lightweight Rigid Flex Printed Wiring Board PCB Motherboard For Smartwatch

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Supply Ability: 200,000+ m² PCB per Month
Detail Information
Place of Origin:
China
Layers:
4 Layer
Board Thickness:
Rigid: 1.5mm;Flex:0.20+/-0.05mm
Copper Thickness:
1OZ
Base Material:
Polyimide+FR4
Min. Line Width/Space:
0.10/0.10mm
Color:
Green
Service:
One Stop Turnkey Service
Oem:
Custom
Supply Ability:
200,000+ m² PCB per Month
Highlight:

Lightweight printed wiring board

,

Smartwatch printed wiring board

,

Smartwatch pcb motherboard

Product Description



Lightweight Rigid-Flex PCB Stable Performance Smart Watch PCB Board





♦ What is Rigid-Flex PCB?




Rigid-Flex PCB is a composite structure circuit board that combines a rigid printed circuit board (PCB) and a flexible circuit board (FPC). It is mainly composed of two parts: rigid and flexible. The rigid layer is made of traditional PCB materials (such as FR-4), providing stable electrical performance and mechanical strength; the flexible layer is made of flexible circuit materials such as polyimide or polyester, which has high bending and folding resistance; the two are connected by special adhesives or welding processes.





Lightweight Rigid Flex Printed Wiring Board PCB Motherboard For Smartwatch 0 Lightweight Rigid Flex Printed Wiring Board PCB Motherboard For Smartwatch 1 Lightweight Rigid Flex Printed Wiring Board PCB Motherboard For Smartwatch 2





Features of Rigid-Flex PCB



    • Rigid-flexible combination: the rigid part supports the core components, and the flexible part is bent.

    • ​​Space saving: replace the cable and reduce the size of the device (suitable for thin and light design).

    • ​​High bending resistance: the flexible part can be bent repeatedly (millions of times of life).

    • ​​Signal stability: the rigid part ensures high-speed signal transmission and reduces interference.

    • ​​Strong reliability: anti-vibration, high temperature resistance, and adaptable to complex environments.

    • Simplified assembly: integrated design, reducing welding points and reducing costs.





Applications of Rigid-Flex PCB



    • Automotive electronics: vehicle electronic systems, instrument panels, navigation systems, vehicle entertainment systems, new energy vehicle battery management systems, etc., adapt to complex space layouts and vibration environments.
    • Industrial control: PLC controllers, robot control systems, sensor interfaces, industrial automation equipment, etc., to ensure stable operation of equipment in harsh environments.
    • Communication field: 5G base stations, satellite communication equipment, etc., provide stable and high-speed signal transmission.





Technical Parameters



Item

Spec

Layers

1~64

Board Thickness

0.1mm-10 mm

Material

FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base,Ceramic, etc

Max Panel Size

800mm×1200mm

Min Hole Size

0.075mm

Min Line Width/Space

Standard: 3mil(0.075mm)  Advance: 2mil

Board Outline Tolerance

0.10mm

Insulation Layer Thickness

0.075mm--5.00mm

Out Layer Copper Thickness

18um--350um

Drilling Hole (Mechanical)

17um--175um

Finish Hole (Mechanical)

17um--175um

Diameter Tolerance (Mechanical)

0.05mm

Registration (Mechanical)

0.075mm

Aspect Ratio

17:01

Solder Mask Type

LPI

SMT Min. Solder Mask Width

0.075mm

Min. Solder Mask Clearance

0.05mm

Plug Hole Diameter

0.25mm--0.60mm




One-Stop PCBs Solution



Lightweight Rigid Flex Printed Wiring Board PCB Motherboard For Smartwatch 3 Lightweight Rigid Flex Printed Wiring Board PCB Motherboard For Smartwatch 4 Lightweight Rigid Flex Printed Wiring Board PCB Motherboard For Smartwatch 5 Lightweight Rigid Flex Printed Wiring Board PCB Motherboard For Smartwatch 6
PCB Prototype Felx PCB  Rigid-Flex PCB Ceramic PCB
Lightweight Rigid Flex Printed Wiring Board PCB Motherboard For Smartwatch 7 Lightweight Rigid Flex Printed Wiring Board PCB Motherboard For Smartwatch 8 Lightweight Rigid Flex Printed Wiring Board PCB Motherboard For Smartwatch 9 Lightweight Rigid Flex Printed Wiring Board PCB Motherboard For Smartwatch 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB






Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry;
    • Perfect after-sales service system;
    • From prototype to mass production
