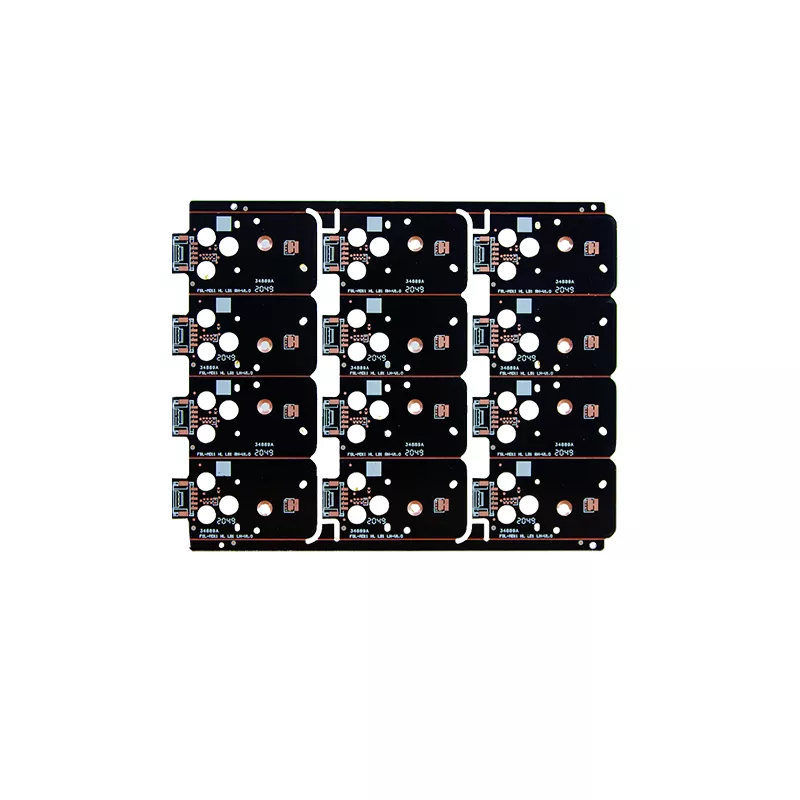

Led Array SMT Lighting PCB Assembly High Brightness Lamp Beads 2.0mm

Led Array SMT Lighting PCB Assembly High Brightness Lamp Beads 2.0mm

MOQ: 1
Payment Terms: T/T
Detail Information
Layer:
6L
Material:
Al
Board Thickness:
2.0mm
Pin Space:
0.20mm
Surface Finish:
SMT
Testing Method:
Flying Probe/AOI/FCT
Service:
One-stop Service,PCB&PCBA,ODM And OEM
Type:
Customizable
Highlight:

SMT Lighting PCB Assembly

,

2.0mm Lighting PCB Assembly

,

2.0mm led array pcb

Product Description

Lighting PCB Assembly SMT Welding High Brightness Lamp Beads



♦ What is Lighting PCB Assembly?



​​​Lighting PCB Assembly is a specialized electronic assembly that integrates circuit boards with lighting components (e.g., LEDs, drivers) and control systems. It serves as the core functional unit in diverse lighting applications, combining electrical connectivity, thermal management, and intelligent control to enable efficient, durable, and feature-rich lighting solutions.



♦ Features of Lighting PCBA:

    • ​​Intelligent Control​​: Equipped with smart sensing (e.g., auto on/off via human proximity detection) and remote functionality, including dimming, scheduling, and scene presets. Enables full-home smart control via mobile app or voice commands.

    • ​​Dimming & Speed Regulation​​: Delivers precise light intensity and device speed adjustment for optimal comfort.

    • ​High Sensitivity​​: Advanced sensor PCBAs ensure rapid and accurate human motion detection.

    • ​​Elegant Design​​: Aesthetically optimized to seamlessly integrate with diverse interior environments.



♦ Applications of Lighting PCBA:

    • ​​Home and commercial lighting: indicator lights, decorative lighting, architectural atmosphere lights, backlights and sign lighting, etc.

    • Automotive electronics: signal lights, brake lights, dashboard backlights and atmosphere lights to improve safety and performance.

    • Medical equipment: high-power inspection equipment to ensure heat dissipation and stability.

    • Computer hardware: power devices, CPU boards and other components with high heat dissipation requirements.

    • Communication equipment: heat dissipation of LED indicators and display screens to ensure stable operation.



♦ Technical Parameters



 PCB Assembly Capability



Item



                  Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

                      T>2mm





♦ One-Stop PCBA Solution



Led Array SMT Lighting PCB Assembly High Brightness Lamp Beads 2.0mm 0 Led Array SMT Lighting PCB Assembly High Brightness Lamp Beads 2.0mm 1 Led Array SMT Lighting PCB Assembly High Brightness Lamp Beads 2.0mm 2 Led Array SMT Lighting PCB Assembly High Brightness Lamp Beads 2.0mm 3
PCBA Prototype Industrial Control PCBA Telecom PCBA Medical PCBA
Led Array SMT Lighting PCB Assembly High Brightness Lamp Beads 2.0mm 4 Led Array SMT Lighting PCB Assembly High Brightness Lamp Beads 2.0mm 5 Led Array SMT Lighting PCB Assembly High Brightness Lamp Beads 2.0mm 6 Led Array SMT Lighting PCB Assembly High Brightness Lamp Beads 2.0mm 7
Automotive PCBA Consumer Electronic PCBA LED PCBA  Security PCBA





♦ Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
