ISOLA 370HR High Frequency PCB Manufacturing And Assembly 1.5mm

ISOLA 370HR High Frequency PCB Manufacturing And Assembly 1.5mm

MOQ: 1
Price: Send us Gerber file for free quotation
Payment Terms: T/T
Detail Information
Layer:
8 Layer
Material:
ISOLA 370HR
Thickness:
1.5mm
Min. Line Width/Space:
0.1/0.1mm
Copper Thickness:
1.5OZ
Surface Treatment:
Immersion Gold
Application:
Radar
Certificate:
UL & IPC Standard & ISO
Highlight:

ISOLA 370HR High Frequency PCB

,

ISOLA High Frequency PCB

,

ISOLA 370hr pcb

Product Description



ISOLA 370HR High Frequency PCB Manufacturing and Assembly



What's High-Frequency PCB?



A ​​High-Frequency PCB​​ is a specialized circuit board designed to carry signals in the ​​radio frequency (RF), microwave, or millimeter-wave ranges​​ (typically ​​500 MHz to 100+ GHz​​). These PCBs are engineered to minimize signal loss, interference, and distortion, making them critical for advanced wireless, radar, and high-speed digital applications.

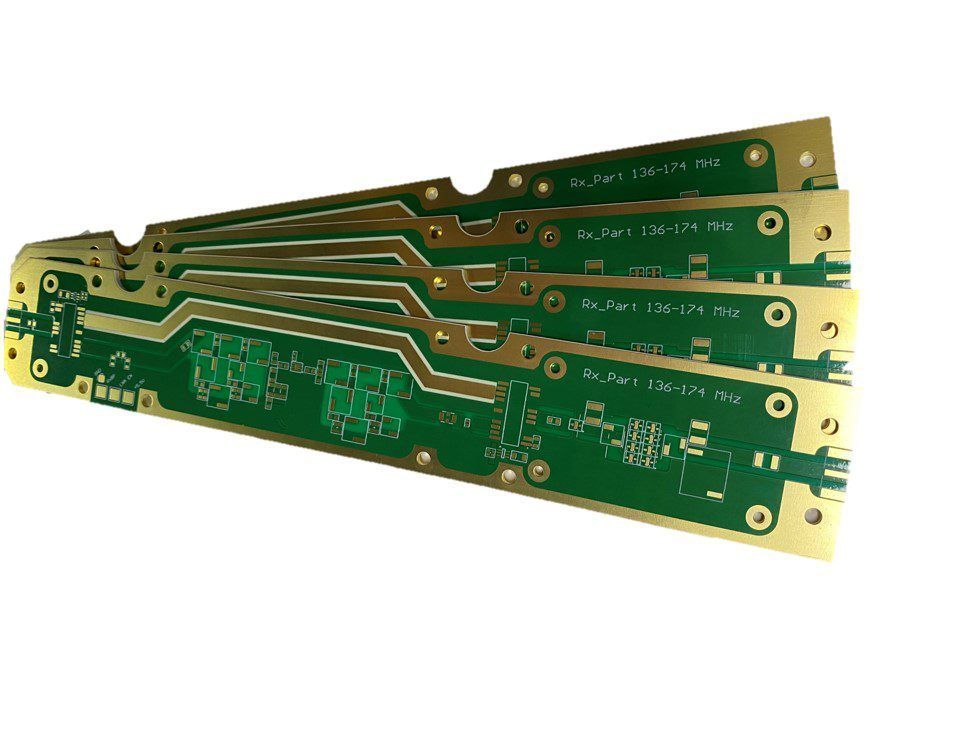

ISOLA 370HR High Frequency PCB Manufacturing And Assembly 1.5mm 0 ISOLA 370HR High Frequency PCB Manufacturing And Assembly 1.5mm 1 ISOLA 370HR High Frequency PCB Manufacturing And Assembly 1.5mm 2



♦ ​​Key Features of High-Frequency PCBs​



✅ ​​Low Dielectric Loss​​ – Uses materials with a stable ​​dielectric constant (Dk)​​ to reduce signal attenuation.
✅ ​​Controlled Impedance​​ – Precise trace geometry ensures consistent impedance (e.g., 50Ω or 75Ω).
✅ ​​Low Signal Skew​​ – Minimizes timing mismatches in high-speed signals.
✅ ​​Thermal Stability​​ – Resists performance drift under temperature fluctuations.
✅ ​​Low Surface Roughness​​ – Smoother copper reduces signal loss at high frequencies.







♦ Materials Used in High-Frequency PCBs​​



High-frequency PCBs require ​​low-loss dielectric materials​​ instead of standard FR-4. Common options include:

Material Dielectric Constant (Dk) Key Applications
​Rogers RO4000​ 3.3–3.7 5G, Automotive Radar
​PTFE (Teflon)​ 2.1–2.5 Aerospace, Satellites
​Isola I-Tera MT40​ 3.4–3.8 High-Speed Digital
​Arlon AD Series​ 3.0–3.5 Military, RF Filters





Technical Parameters



Item

Specification

Laers

1~64

Board thickness

0.1mm-7.0mm

Material

FR-4,CEM-1/CEM-3,PI,High Tg,Rogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSP,HASL,Imm Gold/Nickel/Ag, Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH:±0.05 NPTH:±0.025

Certificate

UL,ISO 9001,ISO14001,IATF16949

Special request

Blind hole+Gold finger  + BGA

Material Suppilers

 Shengyi, KB, Nanya, ITEQ,etc.




One-Stop PCBs Solution



ISOLA 370HR High Frequency PCB Manufacturing And Assembly 1.5mm 3 ISOLA 370HR High Frequency PCB Manufacturing And Assembly 1.5mm 4 ISOLA 370HR High Frequency PCB Manufacturing And Assembly 1.5mm 5 ISOLA 370HR High Frequency PCB Manufacturing And Assembly 1.5mm 6
PCB Prototype Felx PCB  Rigid-Flex PCB Aluminium PCB
ISOLA 370HR High Frequency PCB Manufacturing And Assembly 1.5mm 7 ISOLA 370HR High Frequency PCB Manufacturing And Assembly 1.5mm 8 ISOLA 370HR High Frequency PCB Manufacturing And Assembly 1.5mm 9 ISOLA 370HR High Frequency PCB Manufacturing And Assembly 1.5mm 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB





Advantages of DQS Team

  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
