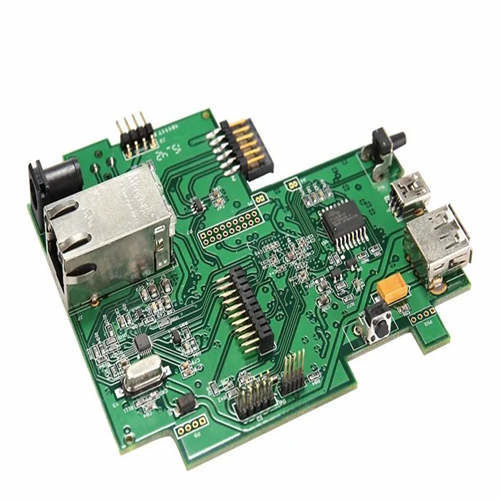

Integrated SMT DIP Industrial PCBA Assembly For Electronics 2.0mm

Integrated SMT DIP Industrial PCBA Assembly For Electronics 2.0mm

MOQ: 1
Payment Terms: T/T
Supply Ability: Post-soldering 700,000 points/day
Detail Information
Certification:
ISO, UL, IPC, Reach
Layer:
18
Material:
FR4
Thickness:
2.0mm
Pin Space:
0.15mm
Min. Component Size:
0201
Min. Hole Size:
0.1mm
Assembly Process:
SMT+DIP
Application:
Power Grid Monitoring Equipment
PCBA Service:
Turnkey Assembly PCBA Service
Supply Ability:
Post-soldering 700,000 points/day
Highlight:

Integrated Industrial PCBA

,

SMT DIP Industrial PCBA

,

SMT DIP electronics pcb assembly

Product Description



Multifunctional Integrated Industrial PCBA Fast Response for Power Grid Monitoring Equipment





♦ What Is Industrial Control PCBA?



Industrial control PCBA (Printed Circuit Board Assembly) is a circuit board assembly designed for industrial automation scenarios, which is equivalent to the "brain" of industrial equipment. It integrates processors (such as ARM, DSP), sensor interfaces, communication modules (such as CAN, EtherCAT), actuator drive circuits, etc., to achieve accurate monitoring and control of industrial production processes (such as mechanical movement, temperature control, data acquisition, etc.).





♦ Industrial Control PCBA Features

    • High reliability: resistant to high temperature (metallurgy), high humidity (chemical industry), strong interference (motor), MTBF>100,000 hours.

    • Strong anti-interference: metal shielding, three-proof treatment (waterproof/dustproof/corrosion-proof), optimized wiring, to ensure signal stability.

    • Functional integration: integrated data acquisition, control, communication and other functions, support multi-device linkage (such as motor + sensor + cloud).

    • Long life: industrial-grade components (chips/capacitors), suitable for 5-10 years of long-term operation, reducing the need for replacement.

♦ Applications:

    • ​​Manufacturing Automation​​: Automotive welding/assembly robots, electronic SMT placement machines, food packaging equipment, etc., to achieve high-precision production.
    • ​​Robots​​: Industrial robotic arms, AGV carts, collaborative robots, etc., to control movement and interaction.
    • ​​Energy and Power​​: Wind power/photovoltaic inverters, power grid monitoring, energy storage battery management (BMS), etc.
    • ​​Petrochemical/Metallurgy​​: Pumping units, reactor controls, rolling mill equipment, etc., to adapt to high temperature and high pressure environments.



♦ Technical Parameters



 PCB Assembly Capability



Item



                  Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

                      T>2mm









♦ One-Stop PCBA Solution



Integrated SMT DIP Industrial PCBA Assembly For Electronics 2.0mm 0 Integrated SMT DIP Industrial PCBA Assembly For Electronics 2.0mm 1 Integrated SMT DIP Industrial PCBA Assembly For Electronics 2.0mm 2 Integrated SMT DIP Industrial PCBA Assembly For Electronics 2.0mm 3
PCBA Prototype Industrial Control PCBA Telecom PCBA Medical PCBA
Integrated SMT DIP Industrial PCBA Assembly For Electronics 2.0mm 4 Integrated SMT DIP Industrial PCBA Assembly For Electronics 2.0mm 5 Integrated SMT DIP Industrial PCBA Assembly For Electronics 2.0mm 6 Integrated SMT DIP Industrial PCBA Assembly For Electronics 2.0mm 7
Automotive PCBA Consumer Electronic PCBA LED PCBA  Security PCBA






♦ Advantages of DQS Team

  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
