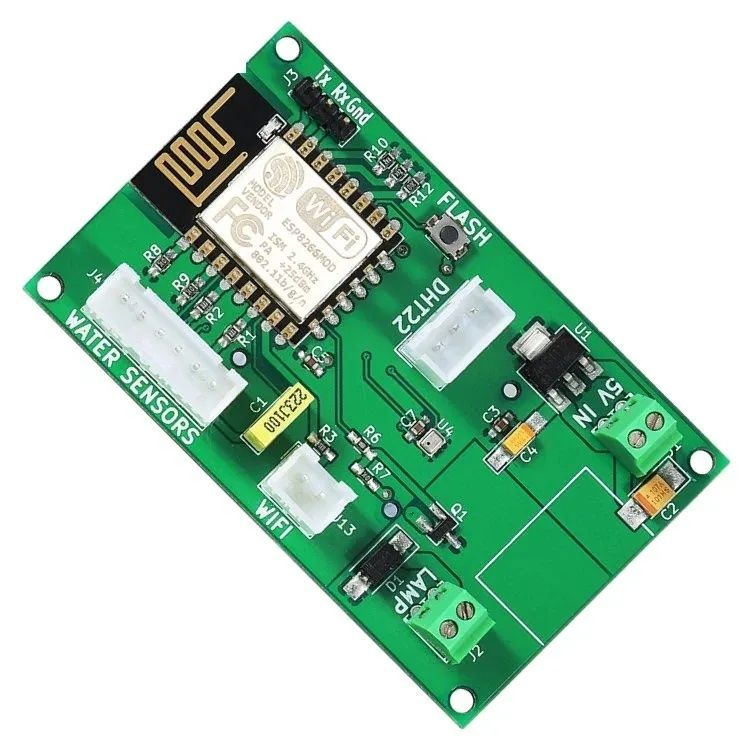

Industrial Control FR4 Through Hole PCB Assembly ENIG Immersion Gold Surface

Industrial Control FR4 Through Hole PCB Assembly ENIG Immersion Gold Surface

MOQ: 1
Price: Contact us
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
ISO, UL, IPC, Reach
Layer:
8 Layer
Material:
FR4
Board Thickness:
0.2-10mm
Surface Finish:
ENIG/Immersion Gold
Minute. Hole Size:
0.2mm
Minute. Line Spacing:
0.075mm
Application:
Industrial Control
PCB Standard::
IPC-A-610 D/1PC-ll Standard
Highlight:

FR4 through hole pcb assembly

,

ENIG through hole pcb assembly

,

FR4 immersion gold pcb

Product Description



Industrial Control Through Hole PCBA Assembly





Industrial control refers to industrial automation control,which is mainly reaized by the combination of electronic, electrical,mechanical and software.That isindustrial contro, or factory automation control.lt mainly refers to the use of computer technology,microelectronic technology,and electrical means to make theproduction and manufacturing process of the factory more automated, efficient, precise, and controllable and visible.







DQS Electronic Group is one of the leading EMS company in China, we provide PCB design, PCB manufacturing, PCB assembly service and testing. Welcome send us your Gerber file to get free quotation. Our email: sales@dqspcba.com









♦ Technical Parameters



 PCB Assembly Capability



Item



                  Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

                      T>2mm









♦ Application Fields



Industrial Control FR4 Through Hole PCB Assembly ENIG Immersion Gold Surface 0 Industrial Control FR4 Through Hole PCB Assembly ENIG Immersion Gold Surface 1 Industrial Control FR4 Through Hole PCB Assembly ENIG Immersion Gold Surface 2 Industrial Control FR4 Through Hole PCB Assembly ENIG Immersion Gold Surface 3
PCBA Prototype Industrial Control PCBA Telecom PCBA Medical PCBA
Industrial Control FR4 Through Hole PCB Assembly ENIG Immersion Gold Surface 4 Industrial Control FR4 Through Hole PCB Assembly ENIG Immersion Gold Surface 5 Industrial Control FR4 Through Hole PCB Assembly ENIG Immersion Gold Surface 6 Industrial Control FR4 Through Hole PCB Assembly ENIG Immersion Gold Surface 7
Automotive PCBA Consumer Electronic PCBA LED PCBA  Security PCBA







♦ Advantages of DQS Team

  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
