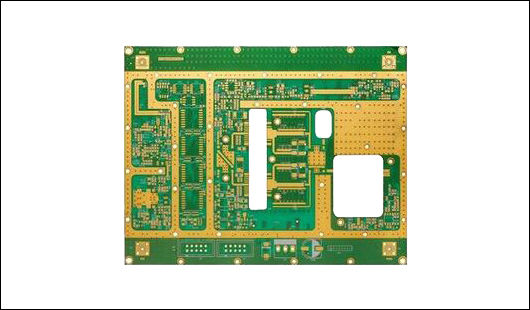

Immersion Gold SMD Multilayer Circuit Board PCB 12 Layer For Communication Equipment

12 Layer High Frequency High Speed PCB for Communication Equipment

♦ What's High Speed PCB?

A ​​High-Speed PCB​​ is a printed circuit board designed to handle ​​fast digital signals with minimal distortion, crosstalk, or timing errors​​. These PCBs are optimized for signal integrity (SI) and power integrity (PI) in applications where signal frequencies exceed ​​50 MHz–100+ GHz​​, such as in ​​5G networks, high-performance computing, and advanced data communication systems​​.

♦ ​​​​Key Characteristics of High-Speed PCBs​​​

✅ ​​Controlled Impedance​​ – Ensures signal reflections are minimized (e.g., 50Ω or 100Ω differential pairs).
✅ ​​Low Signal Loss​​ – Uses ​​low-loss dielectric materials​​ (e.g., Rogers, Isola) to reduce attenuation.
✅ ​​Minimal Crosstalk​​ – Careful trace spacing and shielding prevent interference.
✅ ​​Strict Timing Requirements​​ – Matched trace lengths for differential pairs (e.g., PCIe, DDR5).
✅ ​​Optimized Power Delivery​​ – Low-impedance power planes to prevent voltage drops.

♦ ​​Critical Design Considerations​​​​

1. Material Selection​​

• • ​​Standard FR-4​​ (for < 1 GHz signals).
  • ​​High-Speed Laminates​​ (e.g., ​​Rogers RO4000, Isola I-Tera, Panasonic Megtron 6​​) for > 5 Gbps signals.

​​2. Layer Stackup​​

• • ​​Signal Layers​​ – Adjacent to ground planes for impedance control.
  • ​​Power Planes​​ – Low-inductance design with decoupling capacitors.
  • ​​Symmetrical Stackup​​ – Prevents warping and ensures consistent performance.

​​3. Trace Routing​​

• • ​​Differential Pairs​​ – Tightly coupled with matched lengths (e.g., USB 3.2, HDMI).
  • ​​Avoid 90° Bends​​ – Use ​​45° or curved traces​​ to reduce reflections.
  • ​​Via Optimization​​ – Minimize stubs (use ​​blind/buried vias​​ for HDI designs).

​​4. Power Integrity (PI)​​

• • ​​Low-ESR Decoupling Caps​​ – Placed near ICs to suppress noise.
  • ​​Power Plane Splitting​​ – Avoids interference between analog/digital sections.

​​5. EMI/EMC Mitigation​​

• • ​​Ground Shielding​​ – Via stitching around high-speed traces.
  • ​​EMI Filters​​ – For RF-sensitive circuits

♦ Technical Parameters







♦ One-Stop PCBs Solution



PCB Prototype	Felx PCB	Rigid-Flex PCB	Aluminium PCB
Heavy Copper PCB	HDI PCB	High Frequency PCB	High TG PCB







♦ Advantages of DQS Team



1. On-time Delivery:

• • Owned PCBA factories 15,000 ㎡
  • 13 fully automatic SMT lines
  • 4 DIP assembly lines



     2. Quality Guaranteed:

• • IATF, ISO, IPC, UL standards
  • Online SPI, AOI, X-Ray Inspection
  • The qualified rate of products reach 99.9%



     3. Premium Service:

• • 24H reply your inquiry
  • Perfect after-sales service system
  • From prototype to mass production
