Medical PCBA
Created with Pixso.

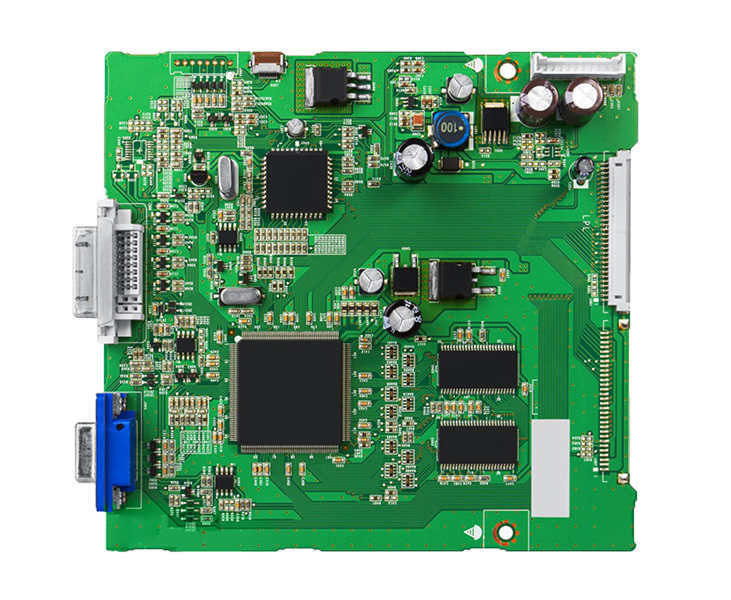

Immersion Gold Mini Medical PCBA Fabrication Assembly 2.2mm IEC 60601 Standard

Immersion Gold Mini Medical PCBA Fabrication Assembly 2.2mm IEC 60601 Standard

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Supply Ability: 200,000+ m² PCB per Month
Detail Information
Layer:
16 L
Material:
FR4
Thickness:
2.2mm
Min. Component Size:
0201
Board Thickness:
2.0 Mm
Surface Finish:
Immersion Gold
Pin Space:
0.2mm
PCBA Testing:
X-ray/AOI Test/Functional Test
Application:
Portable Medical Devices
Supply Ability:
200,000+ m² PCB per Month
Highlight:

Immersion gold Medical PCBA

,

IEC 60601 Medical PCBA

,

2.2mm pcb fabrication assembly

Product Description

High Safety And Miniaturized Design Medical PCBA for Portable Medical Devices







♦ What is Medical PCBA



Medical PCBA (Printed Circuit Board Assembly)​​ refers to the specialized manufacturing and assembly of PCBs used in medical devices and healthcare equipment. These assemblies must meet stringent regulatory standards (such as ​​FDA, ISO 13485, IEC 60601​​) to ensure reliability, safety, and precision in medical applications.





♦ Features of Medical PCBA

    • ​​High Reliability & Precision​​

      • Medical devices often require ​​ultra-low failure rates​​ (e.g., pacemakers, ventilators).
      • Components must be ​​high-precision​​ (e.g., sensors, microcontrollers).
    • ​​Strict Regulatory Compliance​​

      • ​​FDA (U.S.) & CE (Europe)​​ certifications are mandatory.
      • ​​ISO 13485​​ (Quality Management for Medical Devices).
      • ​​IEC 60601​​ (Safety Standards for Medical Electrical Equipment).
    • ​​Miniaturization & High Density​​

      • Many medical devices (e.g., hearing aids, endoscopes) require ​​small, high-density PCBs​​.
      • Use of ​​HDI (High-Density Interconnect) and flexible PCBs​​ is common.



♦ Common Applications:



​Medical Device Category​ ​Examples​ ​PCBA Requirements​
​Diagnostic Equipment​ MRI machines, X-ray systems, ECG monitors High-speed signal processing, EMI shielding
​Wearable & Implantable Devices​ Pacemakers, insulin pumps, hearing aids Ultra-compact, low-power, biocompatible
​Surgical & Robotic Tools​ Endoscopes, laser surgery systems, robotic arms High reliability, sterilization-resistant
​Patient Monitoring Systems​ Blood glucose monitors, pulse oximeters Low-power, wireless connectivity (Bluetooth/Wi-Fi)
​Laboratory & Testing Devices​ PCR machines, DNA sequencers Precision analog circuits, thermal management







 ♦ DQS's PCB Assembly Capability





Item



Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

     T>2mm







♦ One-Stop Solution Including:



 PCB Prototype

Quick Turn PCB

Single-Sided PCB

Double-Sided PCB

 Multilayer PCB

Rigid PCB

Flexible PCB

Rigid-Flex PCB Rigid-Flex PCB Aluminum PCB Metal Core PCB

Thick Copper PCB

HDI PCB

BGA PCB High TG PCB PCB Stencil Impedance Control PCB

PCB Assembly

High-Frequency PCB Bluetooth Circuit Board Automotive PCB USB Circuit Board Halogen-Free PCB

Antenna PCB





Core Competencies of DQS PCB Assembly



SMT

Immersion Gold Mini Medical PCBA Fabrication Assembly 2.2mm IEC 60601 Standard 0

DIP

Immersion Gold Mini Medical PCBA Fabrication Assembly 2.2mm IEC 60601 Standard 1

  • 13 automatic high-speed SMT line
  • 5 million points / day
  • FPC/Double sided mounted
  • Automatic conformal coating
  • 4 DIP line
  • Post-soldering700,000 points/day
  • Professional DIP plug-in team
Immersion Gold Mini Medical PCBA Fabrication Assembly 2.2mm IEC 60601 Standard 2 SMT Technology Immersion Gold Mini Medical PCBA Fabrication Assembly 2.2mm IEC 60601 Standard 3 PCBA OEM
  • Min package: 01005
  • Min pin: 0.3mm
  • Min BGA pitch: 0.3 mm



  •  Full turnkey PCB assembly
  • Partial turnkey PCB assembly
