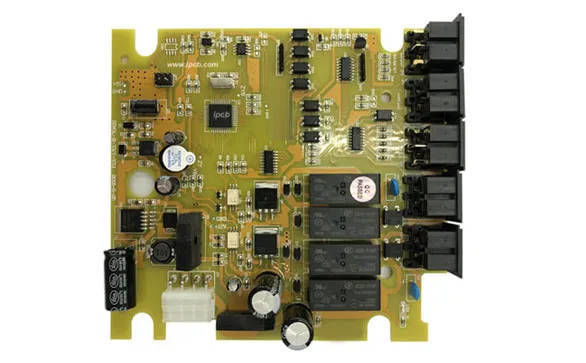

High Precision Medical PCBA Assembled Circuit Board For Rehabilitation Equipment

MOQ:	1
Price:	Inquiry Us
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Layer:

10 L

Material:

FR4

Thickness:

1.0mm

Min. Component Size:

01005

Pin Space:

0.2mm

Assembly Process:

SMT+DIP

PCBA Testing:

X-ray,AOI Test,Functional Test

Application:

Medical Rehabilitation Equipment PCBA

Highlight:

Rehabilitation Medical PCBA

Assembled Medical PCBA

PCBA assembled circuit board

Product Description

High Precision Medical PCBA Real Time Feedback Design Medical Rehabilitation Equipment PCBA

♦ What is Medical PCBA

Medical PCBA (Printed Circuit Board Assembly) serves as the essential core circuit system within medical equipment, playing a critical role in determining the overall performance, reliability, and functionality of the devices. Given its direct influence on operational accuracy and stability, it also significantly impacts patient safety by ensuring precise control, minimizing errors, and supporting compliance with stringent medical standards.

♦ Features of PCBA for Medical Rehabilitation Equipment PCBA

- Precise motion control: High-precision motor drive to achieve millimeter-level motion positioning accuracy.
- Real-time interactive feedback: Integrated force/temperature multimodal sensor to support dynamic monitoring of the treatment process.
- Industrial-grade protection design: IP67 waterproof and dustproof standard to meet the needs of complex treatment environments

♦ Typical Application Scenarios

- Physical therapy equipment: electrotherapy devices, magnetic therapy devices and other professional physical therapy equipment.
- Intelligent rehabilitation system: upper and lower limb rehabilitation robots, hand function training equipment.

♦ DQS's PCB Assembly Capability

Item				Normal	Special
SMT Assembly	PCB(used for SMT) specification	Length and Width( L* W)	Minimum	L≥3mm, W≥3mm	L＜2mm
		Length and Width( L* W)	Maximum	L≤800mm, W≤460mm	L ＞ 1200mm, W＞500mm
		Thickness( T)	Thinnest	0.2mm	T＜0.1mm
		Thickness( T)	Thickest	4 mm	T＞4.5mm
	SMT components specification	Outline Dimension	Min size	0201(0.6mm*0.3mm)	01005(0.3mm*0.2mm)
			Max size	200 * 125	200 * 125
			component thickness	T≤15mm	6.5mm＜T≤15mm
		QFP,SOP,SOJ (multi pins)	Min pin space	0.4mm	0.3mm≤Pitch＜0.4mm
		CSP/ BGA	Min ball space	0.5mm	0.3mm≤Pitch＜0.5mm
DIP Assembly	PCB specification	Length and Width( L* W)	Minimum	L≥50mm, W≥30mm	L＜50mm
		Length and Width( L* W)	Maximum	L≤1200mm, W≤450mm	L≥1200mm, W≥500mm
		Thickness( T)	Thinnest	0.8mm	T＜0.8mm
		Thickness( T)	Thickest	3.5mm	T＞2mm

♦ One-Stop Solution Including:

PCB Prototype	Quick Turn PCB	Single-Sided PCB	Double-Sided PCB	Multilayer PCB	Rigid PCB
Flexible PCB	Rigid-Flex PCB	Rigid-Flex PCB	Aluminum PCB	Metal Core PCB	Thick Copper PCB
HDI PCB	BGA PCB	High TG PCB	PCB Stencil	Impedance Control PCB	PCB Assembly
High-Frequency PCB	Bluetooth Circuit Board	Automotive PCB	USB Circuit Board	Halogen-Free PCB	Antenna PCB

♦ Core Competencies of DQS PCB Assembly

SMT		DIP
13 automatic high-speed SMT line 5 million points / day FPC/Double sided mounted Automatic conformal coating		4 DIP line Post-soldering700,000 points/day Professional DIP plug-in team
	SMT Technology		PCBA OEM
	Min package: 01005 Min pin: 0.3mm Min BGA pitch: 0.3 mm		Full turnkey PCB assembly Partial turnkey PCB assembly
