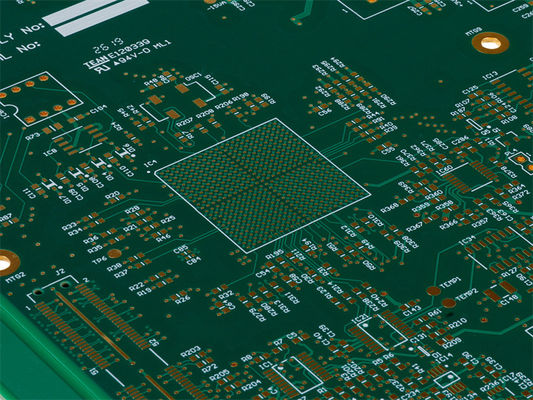

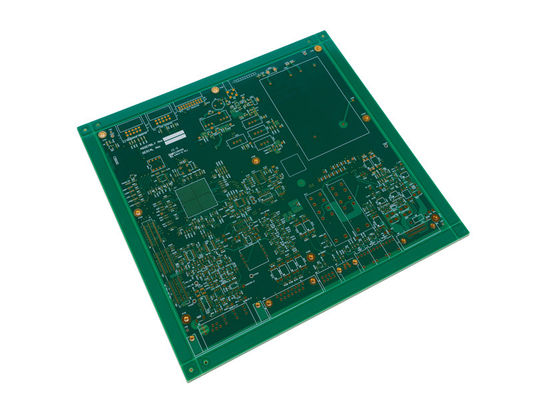

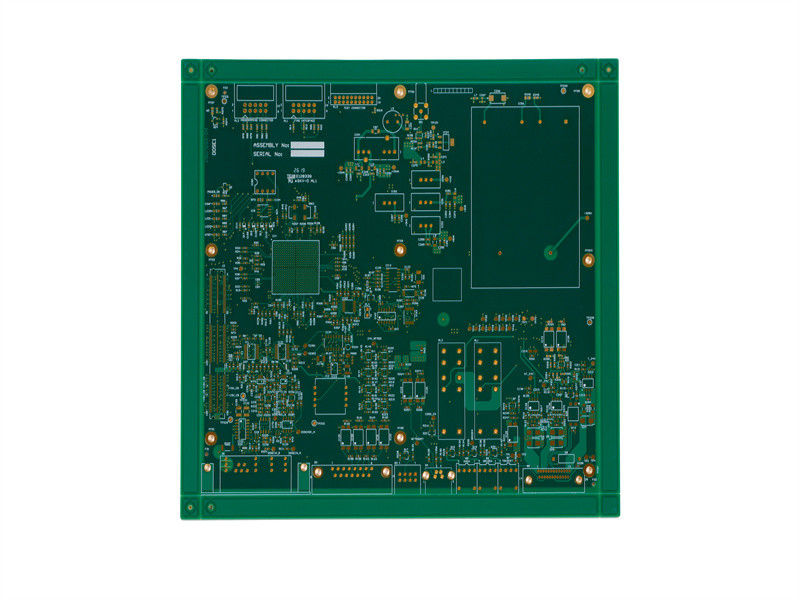

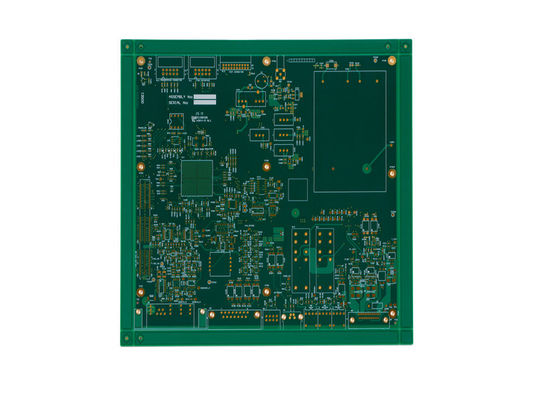

Green 16 Layers High Tg PCB Board Fabrication 2.8mm 3OZ ODM

Green 16 Layers High Tg PCB Board Fabrication 2.8mm 3OZ ODM

Green 16 Layers High Tg PCB Board Fabrication 2.8mm 3OZ ODM

MOQ: 1
Price: Send us Gerber file for free quotation
Payment Terms: T/T
Supply Ability: 200,000+ m² PCB per Month
Detail Information
Product Description
Detail Information
Layer:
16 Layer
Thickness:
2.8mm
Base Material:
S1000-2M (FR4)
Copper Thickness:
3OZ
Min. Line Width/Space:
0.12/0.12mm
Surface Treatment:
ENIG
Certificate:
UL,IATF16949,ISO&Reach
Supply Ability:
200,000+ m² PCB per Month
Highlight:

2.8mm High TG PCB

,

ODM High TG PCB

,

ODM pcb board fabrication

Product Description

Green 16 Layers High Tg PCB Board





♦ What's High-Tg?



Tg refers to the glass transition temperature. When the substrate is exposed to high temperatures, it will change from a glass state to a rubber state. High Tg PCB refers to a circuit board that can withstand higher temperatures without deforming or turning into rubber. Materials with a glass transition temperature above 170°C are usually classified as high Tg PCBs, those above 150°C are mid-range Tg PCBs, and those above 130°C are low Tg PCBs.





♦ Features of High-Tg PCB?

    • Good heat resistance​​: The Tg value of ordinary PCB is generally 130-140°C, and the actual operating temperature may be lower than 100°C due to the influence of thermal expansion coefficient; while the Tg value of high Tg PCB exceeds 170°C, and the thermal expansion coefficient is between 5 ppm/°C and 8 ppm/°C, which can operate at higher temperatures and is less affected by heat.
    • High mechanical strength​​: It can withstand greater external forces and stresses, maintain structural stability in complex environments, and reduce the risk of damage.
    • Strong chemical stability​​: It has higher tolerance to chemical substances and can maintain stable performance in harsh chemical environments.
    • Good signal integrity​​: In high-frequency applications, it can provide better signal transmission and reduce signal loss and distortion.



♦ Technical Parameters



Item

Specification

Laers

1~32

Board thickness

0.1mm-7.0mm

Material

FR-4,CEM-1/CEM-3,PI,High Tg,Rogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSP,HASL,Imm Gold/Nickel/Ag, Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH:±0.05 NPTH:±0.025

Certificate

UL,ISO 9001,ISO14001,IATF16949

Special request

Blind hole+Gold finger  + BGA

Material Suppilers

 Shengyi, KB, Nanya, ITEQ,etc.




♦ One-Stop PCBs Solution



Green 16 Layers High Tg PCB Board Fabrication 2.8mm 3OZ ODM 0 Green 16 Layers High Tg PCB Board Fabrication 2.8mm 3OZ ODM 1 Green 16 Layers High Tg PCB Board Fabrication 2.8mm 3OZ ODM 2 Green 16 Layers High Tg PCB Board Fabrication 2.8mm 3OZ ODM 3
PCB Prototype Felx PCB  Rigid-Flex PCB Aluminium PCB
Green 16 Layers High Tg PCB Board Fabrication 2.8mm 3OZ ODM 4 Green 16 Layers High Tg PCB Board Fabrication 2.8mm 3OZ ODM 5 Green 16 Layers High Tg PCB Board Fabrication 2.8mm 3OZ ODM 6 Green 16 Layers High Tg PCB Board Fabrication 2.8mm 3OZ ODM 7
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB






♦ Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
