Flexible PCB High Quality FPC For Industrial Sensor Connection





♦ What is flexible PCB



​Flexible PCB (FPC)​​, also called a ​​"soft board"​​ or ​​flexible circuit​​, is a type of printed circuit board (PCB) made from ​​flexible insulating materials​​, such as ​​polyimide (PI)​​ or ​​polyester (PET)​​, instead of rigid fiberglass (FR4). This unique construction allows FPCs to ​​bend, fold, and twist​​ without breaking, enabling ​​compact, lightweight, and space-saving designs​​ in modern electronics.

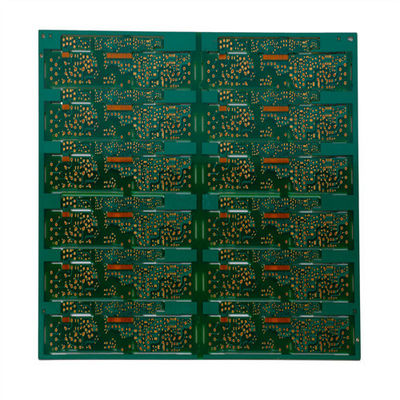

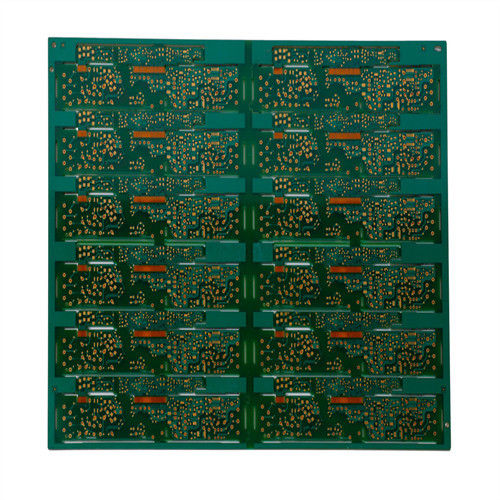

FPC Multilayer Flexible PCB Polyimide Flex Circuit For Industrial Sensor 0 FPC Multilayer Flexible PCB Polyimide Flex Circuit For Industrial Sensor 1 FPC Multilayer Flexible PCB Polyimide Flex Circuit For Industrial Sensor 2



Features of flexible PCB

    • ​Flexibility & Durability​​: Can withstand repeated bending and dynamic motion, making them ideal for applications requiring movement (e.g., hinges, foldable devices).
    • ​Space & Weight Savings​​: Thinner and lighter than rigid PCBs, reducing overall device size and weight.
    • ​High-Density Interconnect (HDI)​​: Supports fine-pitch components and complex routing in tight spaces.
    • ​Improved Reliability​​: Fewer connectors and solder joints reduce failure points, enhancing long-term performance.



Applications of flexible PCB



    • Consumer electronics: such as mobile phone cables, LCD modules, laptops, tablets, digital cameras, PDAs, etc. In these devices, flexible PCBs can realize flexible layout of circuits and meet the design requirements of lightweight products.

    • ​​Automotive electronics: can be used for automotive electronic control systems, dashboards, in-car entertainment systems, etc. Utilizing its anti-vibration and heat-resistant properties, it can adapt to the complex working environment of the car, and can also connect components that are not on the same plane through connectors at different angles to each other.

    • ​​Industrial control: widely used in industrial automation equipment, sensors, etc., can withstand the heat and vibration of industrial machinery, and achieve efficient connection of equipment.

    • ​​Medical equipment: especially wearable devices, which meet their strict requirements on weight and size, as well as the need to adapt to the organic shape of the human body.





Technical Parameters



Item

Spec

Layers

1~64

Board Thickness

0.1mm-10 mm

Material

FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base,Ceramic, etc

Max Panel Size

800mm×1200mm

Min Hole Size

0.075mm

Min Line Width/Space

Standard: 3mil(0.075mm)  Advance: 2mil

Board Outline Tolerance

0.10mm

Insulation Layer Thickness

0.075mm--5.00mm

Out Layer Copper Thickness

18um--350um

Drilling Hole (Mechanical)

17um--175um

Finish Hole (Mechanical)

17um--175um

Diameter Tolerance (Mechanical)

0.05mm

Registration (Mechanical)

0.075mm

Aspect Ratio

17:01

Solder Mask Type

LPI

SMT Min. Solder Mask Width

0.075mm

Min. Solder Mask Clearance

0.05mm

Plug Hole Diameter

0.25mm--0.60mm







One-Stop PCBs Solution



FPC Multilayer Flexible PCB Polyimide Flex Circuit For Industrial Sensor 3 FPC Multilayer Flexible PCB Polyimide Flex Circuit For Industrial Sensor 4 FPC Multilayer Flexible PCB Polyimide Flex Circuit For Industrial Sensor 5 FPC Multilayer Flexible PCB Polyimide Flex Circuit For Industrial Sensor 6
PCB Prototype Felx PCB  Rigid-Flex PCB Ceramic PCB
FPC Multilayer Flexible PCB Polyimide Flex Circuit For Industrial Sensor 7 FPC Multilayer Flexible PCB Polyimide Flex Circuit For Industrial Sensor 8 FPC Multilayer Flexible PCB Polyimide Flex Circuit For Industrial Sensor 9 FPC Multilayer Flexible PCB Polyimide Flex Circuit For Industrial Sensor 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB





Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry;
    • Perfect after-sales service system;
    • From prototype to mass production
