Lighting PCB Assembly
Created with Pixso.

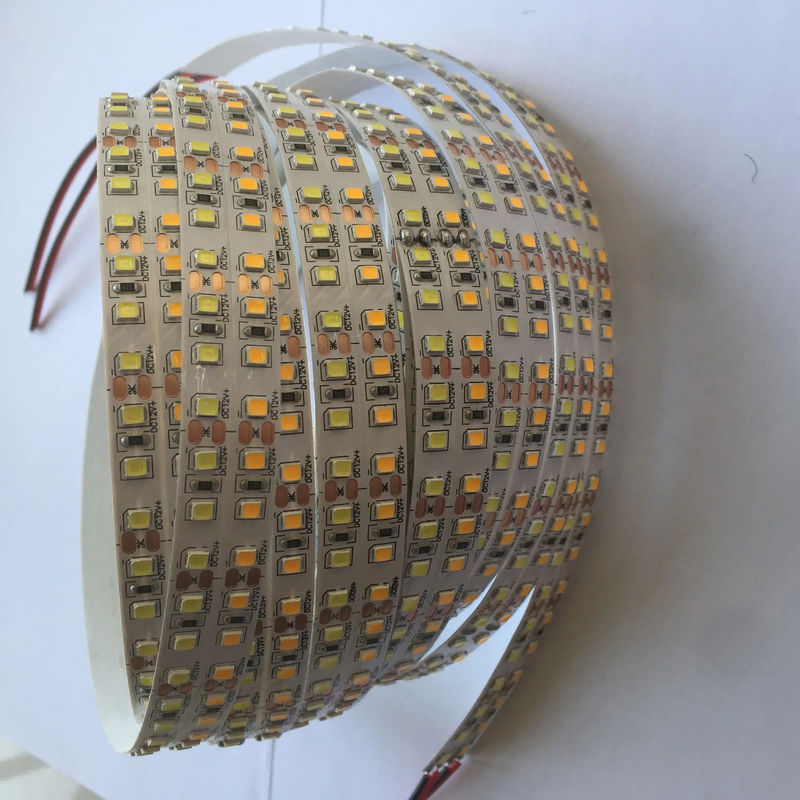

FPC Flexible Traffic Light PCB Printed Circuit Board Assembly For Led Strip

FPC Flexible Traffic Light PCB Printed Circuit Board Assembly For Led Strip

MOQ: 1
Payment Terms: T/T
Detail Information
Layer:
2 L
Material:
Al
Board Thickness:
2.0mm
Surface Finish:
OSP
Pin Space:
0.25mm
Application:
Compact And Durable Lighting
Highlight:

FPC traffic light pcb

,

Flexible traffic light pcb

,

FPC flexible pcb for led strip

Product Description

Flexible Lighting PCB Assembly for Compact and Durable Lighting Designs



♦ What is Lighting PCB Assembly?



​​Flexible PCB (FPC)​​, also called a ​​"soft board"​​ or ​​flexible circuit​​, is a type of printed circuit board (PCB) made from ​​flexible insulating materials​​, such as ​​polyimide (PI)​​ or ​​polyester (PET)​​, instead of rigid fiberglass (FR4). This unique construction allows FPCs to ​​bend, fold, and twist​​ without breaking, enabling ​​compact, lightweight, and space-saving designs​​ in modern electronics.







♦ Features of Lighting PCBA:

    • Intelligent control: Some Lighting PCBAs are equipped with intelligent control function, such as sensor footlights PCBA using advanced sensor technology, which can automatically detect the human body approaching and intelligently control the light, when someone approaches, the sensor will quickly sense and automatically light up the footlights to provide suitable lighting brightness; when no one is around, the light will turn off automatically to save energy and extend the service life.When someone approaches, the sensor quickly senses and automatically lights up the footlights to provide appropriate lighting brightness; when no one is around, the lights are automatically switched off to save energy and prolong service life.There are also smart switch PCBAs that support remote control, timer switching and scene setting, etc. Users can remotely control the lights and other equipment at home through mobile applications or voice control to realise an intelligent home experience.

    • Dimming and speed regulation: Some Lighting PCBAs use advanced dimming and speed regulation technology, which allows users to accurately adjust the light intensity and equipment operation speed according to their needs, and obtain a comfortable lighting experience.

    • High sensitivity and accuracy: Take the sensor footlights PCBA as an example, its design team has carefully researched and developed to ensure that the product has high sensitivity and accuracy, and can accurately sense human body movements.

    • Elegant Appearance Design: Some companies pay attention to the appearance design when designing Lighting PCBAs, so that they can harmonise with the surrounding environment and become part of the interior decoration.





♦ Applications of Lighting PCBA:

    • Home Lighting: Like all kinds of lamps and lanterns in the family, such as chandeliers, wall lamps, table lamps, etc. can be equipped with corresponding Lighting PCBA to achieve intelligent control.

    • Commercial Lighting: Widely used in the lighting system of commercial places such as shopping malls, hotels, office buildings, etc. Lighting can be controlled according to different scenes and time to create the right atmosphere.

    • Public Lighting: Used in lighting facilities in streets, parks, squares and other public places to achieve centralised control and intelligent management through Lighting PCBA, improving lighting efficiency and energy saving.







♦ Technical Parameters



 PCB Assembly Capability



Item



                  Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

                      T>2mm









♦ One-Stop PCBA Solution



FPC Flexible Traffic Light PCB Printed Circuit Board Assembly For Led Strip 0 FPC Flexible Traffic Light PCB Printed Circuit Board Assembly For Led Strip 1 FPC Flexible Traffic Light PCB Printed Circuit Board Assembly For Led Strip 2 FPC Flexible Traffic Light PCB Printed Circuit Board Assembly For Led Strip 3
PCBA Prototype Industrial Control PCBA Telecom PCBA Medical PCBA
FPC Flexible Traffic Light PCB Printed Circuit Board Assembly For Led Strip 4 FPC Flexible Traffic Light PCB Printed Circuit Board Assembly For Led Strip 5 FPC Flexible Traffic Light PCB Printed Circuit Board Assembly For Led Strip 6 FPC Flexible Traffic Light PCB Printed Circuit Board Assembly For Led Strip 7
Automotive PCBA Consumer Electronic PCBA LED PCBA  Security PCBA









♦ Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
