MOQ: | 1 |
Price: | Send us Gerber file for free quotation |
Payment Terms: | T/T |

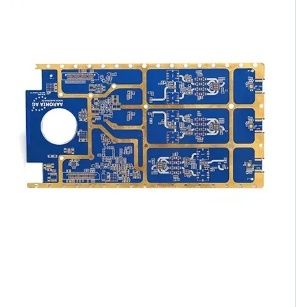

TG180 Communication PCB Manufacturing
♦ What's PCB Manufacturing?
PCB (Printed Circuit Board) manufacturing is the process of designing and producing the physical boards that mechanically support and electrically connect electronic components using conductive pathways, tracks, or signal traces etched from copper sheets laminated onto a non-conductive substrate.
♦ Key Steps in PCB Manufacturing:
Design & Layout
Printing the Design
Substrate Preparation
Etching
Drilling
Plating & Copper Deposition
Solder Mask Application
Silkscreen Printing
Surface Finish
Testing & Inspection
♦ Types of PCBs:
♦ Technical Parameters
Item |
Specification |
Laers |
1~64 |
Board thickness |
0.1mm-10.0mm |
Material |
FR-4,CEM-1/CEM-3,PI,High Tg,Rogers |
Max panel size |
32"×48"(800mm×1200mm) |
Min hole size |
0.075mm |
Min line width |
3mil(0.075mm) |
Surface finish |
OSP,HASL,Imm Gold/Nickel/Ag, Electric gold |
Copper thickness |
0.5-7.0OZ |
Soldermask |
Green/Yellow/Black/White/Red/Blue |
Silkscreen |
Red/Yellow/Black/White |
Min PAD |
5mil(0.13mm) |
Inter package |
Vacuum |
Outer package |
Carton |
Outline tolerance |
±0.75mm |
Hole tolerance |
PTH:±0.05 NPTH:±0.025 |
Certificate |
UL,ISO 9001,ISO14001,IATF16949 |
Special request |
Blind hole+Gold finger + BGA |
Material Suppilers |
Shengyi, KB, Nanya, ITEQ,etc. |
