ENIG FR4 Nebulizer Electronics Medical PCBA Assembly Manufacturing

MOQ:	1
Price:	Inquiry Us
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Layer:

16 L

Material:

FR4

Min. Component Size:

0201

Pin Space:

0.2mm

Surface Finish:

ENIG

PCBA Testing:

X-ray,AOI Test,Functional Test

Component Sourcing:

Yes

Application:

Medical Ventilator

Highlight:

FR4 Medical PCBA

ENIG Medical PCBA

PCB medical electronics assembly

Product Description

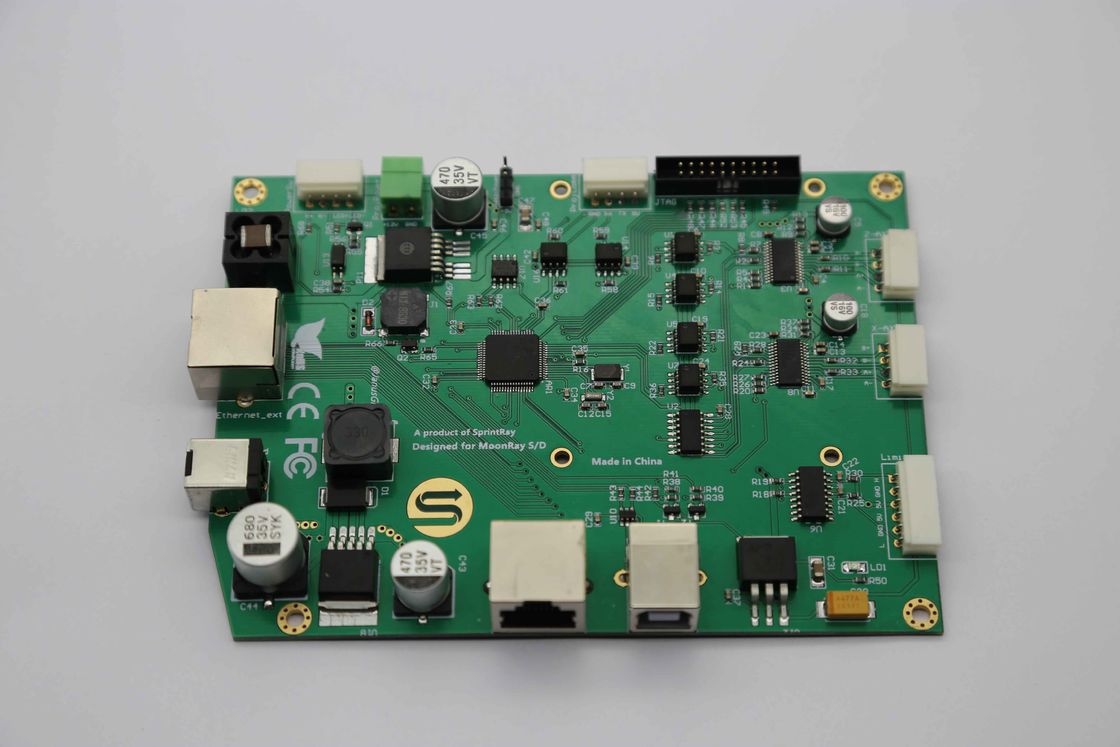

Mini Nebulizer Medical Nebulizer for Homeuse PCB Manufacturing and PCBA

♦ What is Medical PCBA

Medical PCBA (Printed Circuit Board Assembly) serves as the essential core circuit system within medical equipment, playing a critical role in determining the overall performance, reliability, and functionality of the devices. Given its direct influence on operational accuracy and stability, it also significantly impacts patient safety by ensuring precise control, minimizing errors, and supporting compliance with stringent medical standards.

♦ Features of Medical PCBA

- High precision: Ensure zero error in diagnostic/therapeutic data (e.g. heart rate monitoring error <1%);
- Ultra-stable: supports 7×24 hours continuous operation (e.g. ventilator motherboard life >100,000 hours);
- Strong protection: passes biocompatibility test (e.g. ISO 10993 standard), resistant to alcohol and high temperature disinfection.

♦ Common Applications:

Medical Device Category	Examples	PCBA Requirements
Diagnostic Equipment	MRI machines, X-ray systems, ECG monitors	High-speed signal processing, EMI shielding
Wearable & Implantable Devices	Pacemakers, insulin pumps, hearing aids	Ultra-compact, low-power, biocompatible
Surgical & Robotic Tools	Endoscopes, laser surgery systems, robotic arms	High reliability, sterilization-resistant
Patient Monitoring Systems	Blood glucose monitors, pulse oximeters	Low-power, wireless connectivity (Bluetooth/Wi-Fi)
Laboratory & Testing Devices	PCR machines, DNA sequencers	Precision analog circuits, thermal management

♦ DQS's PCB Assembly Capability

Item				Normal	Special
SMT Assembly	PCB(used for SMT) specification	Length and Width( L* W)	Minimum	L≥3mm, W≥3mm	L＜2mm
		Length and Width( L* W)	Maximum	L≤800mm, W≤460mm	L ＞ 1200mm, W＞500mm
		Thickness( T)	Thinnest	0.2mm	T＜0.1mm
		Thickness( T)	Thickest	4 mm	T＞4.5mm
	SMT components specification	Outline Dimension	Min size	0201(0.6mm*0.3mm)	01005(0.3mm*0.2mm)
			Max size	200 * 125	200 * 125
			component thickness	T≤15mm	6.5mm＜T≤15mm
		QFP,SOP,SOJ (multi pins)	Min pin space	0.4mm	0.3mm≤Pitch＜0.4mm
		CSP/ BGA	Min ball space	0.5mm	0.3mm≤Pitch＜0.5mm
DIP Assembly	PCB specification	Length and Width( L* W)	Minimum	L≥50mm, W≥30mm	L＜50mm
		Length and Width( L* W)	Maximum	L≤1200mm, W≤450mm	L≥1200mm, W≥500mm
		Thickness( T)	Thinnest	0.8mm	T＜0.8mm
		Thickness( T)	Thickest	3.5mm	T＞2mm

♦ One-Stop Solution Including:

PCB Prototype	Quick Turn PCB	Single-Sided PCB	Double-Sided PCB	Multilayer PCB	Rigid PCB
Flexible PCB	Rigid-Flex PCB	Rigid-Flex PCB	Aluminum PCB	Metal Core PCB	Thick Copper PCB
HDI PCB	BGA PCB	High TG PCB	PCB Stencil	Impedance Control PCB	PCB Assembly
High-Frequency PCB	Bluetooth Circuit Board	Automotive PCB	USB Circuit Board	Halogen-Free PCB	Antenna PCB

♦ Core Competencies of DQS PCB Assembly

SMT		DIP
13 automatic high-speed SMT line 5 million points / day FPC/Double sided mounted Automatic conformal coating		4 DIP line Post-soldering700,000 points/day Professional DIP plug-in team
	SMT Technology		PCBA OEM
	Min package: 01005 Min pin: 0.3mm Min BGA pitch: 0.3 mm		Full turnkey PCB assembly Partial turnkey PCB assembly
