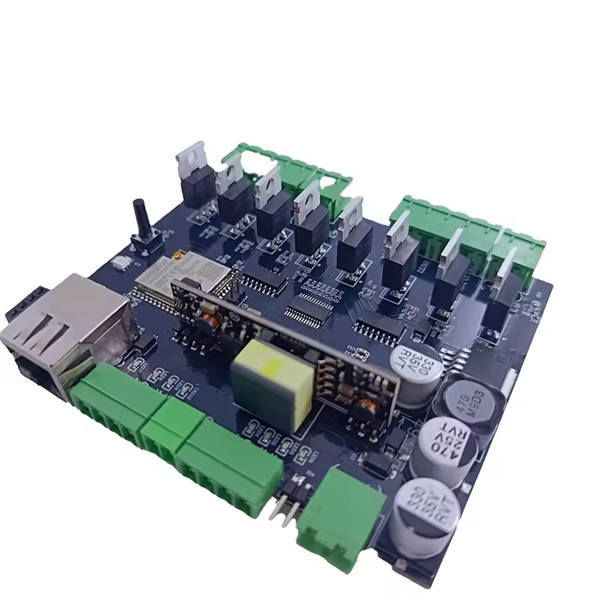

Engine Control Car PCB Board SMT PCBA 2.0mm Thickness Electronic Components

Engine Control Car PCB Board SMT PCBA 2.0mm Thickness Electronic Components

MOQ: 1
Price: Contact our PCB engineer
Payment Terms: T/T
Detail Information
Layer:
12L
Min. Component Size:
0201
Board Thickness:
2.0 Mm
Surface Finish:
ENIG
Pin Space:
0.1mm
Test:
AOI,FCT,ICT
Pcba Service:
One Stop Turnkey PCBA Service
Application:
ECU
Highlight:

Engine Control car pcb board

,

2.0mm car pcb board

,

Engine Control smt pcba

Product Description

Automotive PCBA High Temperature Resistance and Vibration Resistance for Engine Control





♦ What's Automotive PCBA?



Automotive PCBA, is the core of automotive electronic systems.It fixes the electronic components on the PCB to form a complete circuit, which is used in various systems of the car.



♦ Features of Automotive Engine Control Unit PCBA

  • Precise Control​​: It can precisely control key engine parameters such as fuel injection, ignition timing, and intake air volume, ensuring the engine operates efficiently and stably under various conditions.
  • ​High Reliability​​: Designed to withstand harsh automotive environments, including extreme temperatures, vibrations, and electromagnetic interference. Special packaging processes and anti-vibration designs are adopted to ensure the long-term reliability of components.
  • ​Real-time Response​​: With high real-time response capabilities, it can quickly adjust engine operations according to changes in vehicle operating conditions, such as load and speed changes.



♦ Types of Automotive PCB Assemblies:



​​Application​​ ​​PCB Requirements​​ ​​Examples​​
​​Engine Control Unit (ECU)​​ High-temperature resistance, EMI shielding Fuel injection, ignition timing
​​Infotainment System​​ High-speed signal integrity, multilayer Touchscreens, GPS, Bluetooth
​​ADAS (Radar/LiDAR)​​ RF/microwave PCBs, low-loss materials Collision avoidance, adaptive cruise control
​​EV Battery Management (BMS)​​ High-current PCBs, thermal management Cell balancing, charge monitoring
​​LED Lighting​​ Aluminum PCBs for heat dissipation Headlights, interior lightin





♦ DQS's PCB Assembly Capability





Item



Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

     T>2mm
