MOQ: | 1 |
Price: | Contact us |
Payment Terms: | T/T |
Attribute | Value |
---|---|
Layer | 12 Layer |
Material | FR4 |
Board Thickness | 2.5mm |
Surface Finish | Immersion Gold |
Pin Space | 0.25mm |
Application | Electronic Products |

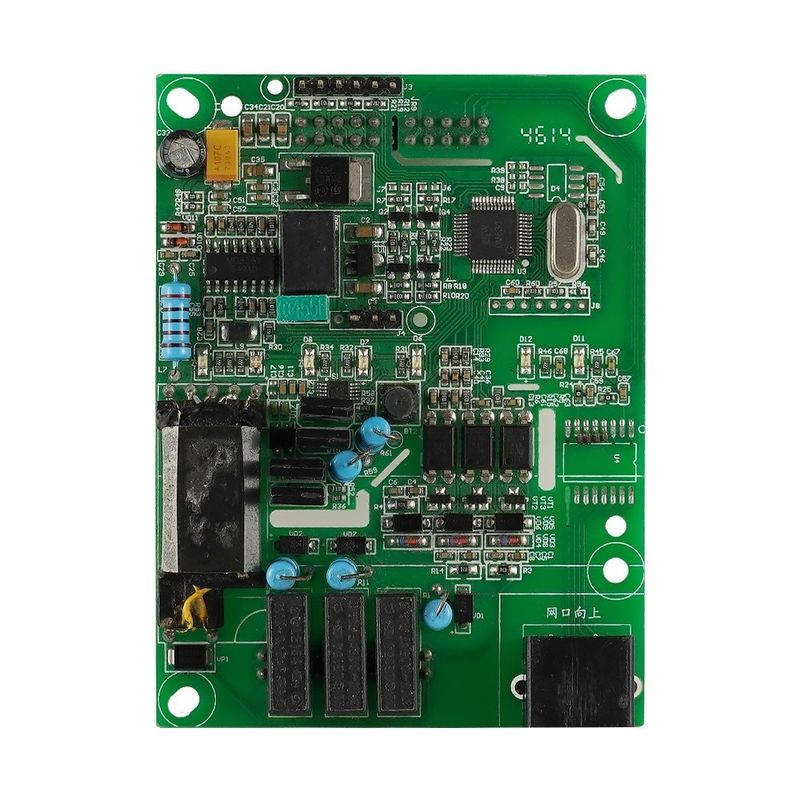

Electronics PCB Components Assembly (also called PCBA - Printed Circuit Board Assembly) is the process of mounting and soldering electronic components onto a bare PCB to create a functional circuit board. This process transforms a blank PCB into a working electronic device, such as a smartphone, computer, or IoT gadget.
There are two primary assembly techniques:
Combines both methods for complex designs.
Step | Description |
---|---|
1. Solder Paste Printing | A stencil applies solder paste to PCB pads |
2. Component Placement | Pick-and-place machines position SMD components |
3. Reflow Soldering | Heats PCB to melt solder and form connections |
4. Through-Hole Insertion | THT components are manually/machine-inserted |
5. Wave Soldering (THT) | Solder bonds THT components to the board |
6. Inspection & Testing | AOI (Automated Optical Inspection), X-ray (for BGAs), functional testing |
7. Conformal Coating (Optional) | Protects PCB from moisture, dust, and corrosion |
DQS Electronic Group is one of the leading EMS companies in China, providing PCB design, PCB manufacturing, PCB assembly service and testing. Welcome to send us your Gerber file to get a free quotation. Our email: sales@dqspcba.com
PCB Assembly Capability | ||
---|---|---|
Item | Normal | Special |
SMT Assembly | PCB(used for SMT) specification | |
Length and Width( L* W) | Minimum: L≥3mm, W≥3mm Maximum: L≤800mm, W≤460mm |
L<2mm L>1200mm, W>500mm |
Thickness( T) | Thinnest: 0.2mm Thickest: 4 mm |
T<0.1mm T>4.5mm |
SMT components specification | Outline Dimension Min size: 0201(0.6mm*0.3mm) Max size: 200 * 125 Component thickness: T≤15mm |
01005(0.3mm*0.2mm) 200 * 125 6.5mm<T≤15mm |
QFP,SOP,SOJ (multi pins) | Min pin space: 0.4mm | 0.3mm≤Pitch<0.4mm |
CSP/ BGA | Min ball space: 0.5mm | 0.3mm≤Pitch<0.5mm |
DIP Assembly | PCB specification Length and Width( L* W) Minimum: L≥50mm, W≥30mm Maximum: L≤1200mm, W≤450mm Thickness( T) Thinnest: 0.8mm Thickest: 3.5mm |
L<50mm L≥1200mm, W≥500mm T<0.8mm T>2mm |
