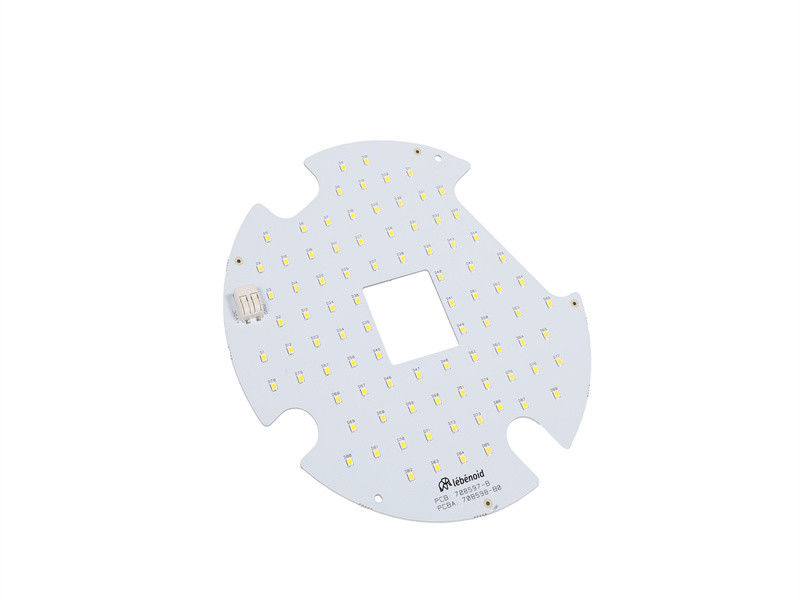

Electrical Led Lighting Aluminum Substrate PCB Printing Single Sided ODM

Electrical Led Lighting Aluminum Substrate PCB Printing Single Sided ODM

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Supply Ability: 200,000+ m² PCB per Month
Detail Information
Layer:
2 Layer
Board Thickness:
2.0 Mm
Material:
Aluminum
Min. Line Width/Space:
0.1/0.1mm
Color:
White
Surface Treatment:
HASL
Application:
Lighting
Certificate:
UL,CE,Rohs,IATF16949,ISO
Type:
Customizable
Supply Ability:
200,000+ m² PCB per Month
Highlight:

Single Sided aluminum substrate pcb

,

ODM aluminum substrate pcb

,

ODM aluminium led pcb

Product Description



Lighting Aluminum PCB Excellent Electrical Performance Single-sided PCB Board Printing





♦ What is Aluminum PCB?




Aluminum substrate is a functional circuit board with aluminum (or aluminum alloy) as the base material. It is mainly composed of circuit layer (copper foil), insulation layer and metal base layer. Its core value lies in efficient heat dissipation and high power carrying capacity. It is widely used in electronic devices that are sensitive to heat or require high current drive.





Electrical Led Lighting Aluminum Substrate PCB Printing Single Sided ODM 0 Electrical Led Lighting Aluminum Substrate PCB Printing Single Sided ODM 1 Electrical Led Lighting Aluminum Substrate PCB Printing Single Sided ODM 2






♦ Features of Aluminum PCB

    •  Excellent heat dissipation performance: The core advantage of aluminum-based PCBs is the high thermal conductivity of the substrate itself (the thermal conductivity of aluminum is usually 150~240 W/(m·K), much higher than the 0.3~0.5 W/(m·K) of ordinary FR-4 epoxy resin boards). Heat can be quickly transferred to the housing or heat sink through the aluminum substrate to avoid local overheating.
    • ​​Good electrical performance: The dielectric constant of the insulating layer is usually 3~5 (lower than 4~5 of FR-4, but higher than ceramic substrate), which is suitable for medium and high frequency circuits (but high frequency applications still require ceramic substrates).
    • High rigidity: The mechanical strength of aluminum substrate is better than that of organic substrates such as FR-4, and it has strong resistance to bending and vibration, making it suitable for scenarios with high requirements for structural stability (such as automobiles and industrial equipment).





Applications of Aluminum PCB

    • ​​LED lighting: Solve the problem of high heating of LED lamp beads (such as street lights, spotlights, and car headlights) to ensure stable lighting effect and life.
    • ​​Power supply and power devices: Adapt to high-current devices such as switching power supplies, inverters, and frequency converters, and quickly dissipate the heat of components such as IGBTs and MOS tubes.
    • ​​Automotive electronics: Used in on-board chargers (OBCs), DC-DC converters, and car light drive modules to cope with high temperature environments in the engine compartment.
    • ​​​​Industrial control: Heat dissipation and circuit integration of high-voltage equipment such as servo drives and PLC controllers.





Technical Parameters



Item

Specification

Laers

1~32

Board thickness

0.1mm-7.0mm

Material

FR-4,CEM-1/CEM-3,PI,High Tg,Rogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSP,HASL,Imm Gold/Nickel/Ag, Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH:±0.05 NPTH:±0.025

Certificate

UL,ISO 9001,ISO14001,IATF16949

Special request

Blind hole+Gold finger  + BGA

Material Suppilers

 Shengyi, KB, Nanya, ITEQ,etc.




One-Stop PCBs Solution



Electrical Led Lighting Aluminum Substrate PCB Printing Single Sided ODM 3 Electrical Led Lighting Aluminum Substrate PCB Printing Single Sided ODM 4 Electrical Led Lighting Aluminum Substrate PCB Printing Single Sided ODM 5 Electrical Led Lighting Aluminum Substrate PCB Printing Single Sided ODM 6
PCB Prototype Felx PCB  Rigid-Flex PCB Ceramic PCB
Electrical Led Lighting Aluminum Substrate PCB Printing Single Sided ODM 7 Electrical Led Lighting Aluminum Substrate PCB Printing Single Sided ODM 8 Electrical Led Lighting Aluminum Substrate PCB Printing Single Sided ODM 9 Electrical Led Lighting Aluminum Substrate PCB Printing Single Sided ODM 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB
