MOQ: | 1 |
Price: | Send us Gerber file for free quotation |
Payment Terms: | T/T |

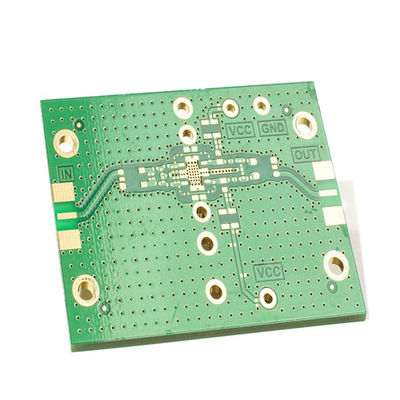

32-layer 8OZ Thick Copper PCB for high-power electrical appliances
♦ What is Thick copper PCB?
Thick copper PCB refers to a circuit board formed by bonding a layer of copper foil with a thickness of 2 ounces (oz, about 62.5 microns) or more to FR-4 or other substrates during the printed circuit board (PCB) manufacturing process.
♦ Features of Thick Copper PCB
Excellent conductivity: Thick copper foil greatly improves conductivity, reduces impedance, meets the needs of high-current and high-frequency equipment, and improves circuit speed and reliability.
Strong load-bearing capacity: Thickening copper foil enhances mechanical strength and rigidity, can withstand higher physical pressure, bending and mechanical/thermal stress, and adapt to harsh environments.
Good heat dissipation: Thick copper layer quickly disperses heat, reduces thermal stress, ensures stable operation of high-power equipment and extends life.
High thermal stability: Efficient heat conduction reduces heat accumulation and maintains performance stability of equipment at high temperatures.
High design flexibility: Supports wider lines and smaller spacing to achieve complex and high-density circuit layout.
♦ Applications of Thick Copper PCB
♦ Technical Parameters
Item |
Specification |
Laers |
1~32 |
Board thickness |
0.1mm-7.0mm |
Material |
FR-4,CEM-1/CEM-3,PI,High Tg,Rogers |
Max panel size |
32"×48"(800mm×1200mm) |
Min hole size |
0.075mm |
Min line width |
3mil(0.075mm) |
Surface finish |
OSP,HASL,Imm Gold/Nickel/Ag, Electric gold |
Copper thickness |
0.5-7.0OZ |
Soldermask |
Green/Yellow/Black/White/Red/Blue |
Silkscreen |
Red/Yellow/Black/White |
Min PAD |
5mil(0.13mm) |
Inter package |
Vacuum |
Outer package |
Carton |
Outline tolerance |
±0.75mm |
Hole tolerance |
PTH:±0.05 NPTH:±0.025 |
Certificate |
UL,ISO 9001,ISO14001,IATF16949 |
Special request |
Blind hole+Gold finger + BGA |
Material Suppilers |
Shengyi, KB, Nanya, ITEQ,etc. |
