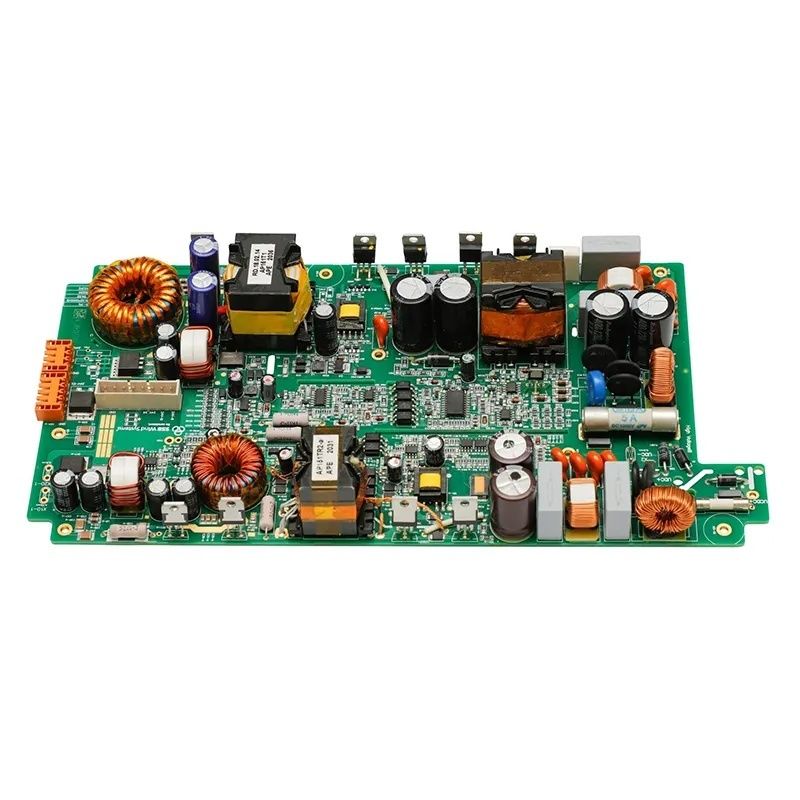

Driver CEM-1 Through Hole Double Sided PCB Board Assembly OEM

Driver CEM-1 Through Hole Double Sided PCB Board Assembly OEM

MOQ: 1
Price: Contact us
Payment Terms: T/T
Detail Information
Place of Origin:
China
Certification:
ISO, UL, IPC, Reach
Layer:
20Layer
Material:
FR4
Board Thickness:
0.2-10mm
Surface Finish:
ENIG
Pin Space:
0.25mm
Application:
Driver
Highlight:

CEM-1 double sided pcb board

,

Driver double sided pcb board

,

OEM cem 1 pcb

Product Description



Driver Through Hole PCB Assembly





♦ What Is Through-Hole Assembly Services?



Through-Hole Assembly Services​​ involve the process of mounting electronic components onto a printed circuit board (PCB) by inserting their leads through drilled holes and soldering them to pads on the opposite side. This method is one of the oldest and most reliable PCB assembly techniques, often used for components requiring ​​strong mechanical bonds​​ or ​​high-power applications​​.







 Key Features of BGA Assembly Services:​

​​​

1. ​​Component Types​​

    • ​​Traditional Through-Hole Components​​: Resistors, capacitors, connectors, transformers, and large ICs.
    • ​​Mixed Technology​​: Some PCBs combine ​​through-hole (THT) and surface-mount (SMT)​​ components for flexibility.

2. ​​Assembly Process​​

    • ​​Manual or Automated Insertion​​:
      • ​​Manual​​: Used for prototypes or low-volume production.
      • ​​Automated (AI/Auto-Insertion)​​: High-speed machines place components for mass production.
    • ​​Wave Soldering​​:
      • The PCB passes over a molten solder wave, bonding all through-hole leads at once.
    • ​​Hand Soldering (For Rework/Repair)​​:
      • Used for delicate components or post-assembly fixes.

3. ​​Advantages of Through-Hole Assembly​​

    • ​​Strong Mechanical Bonds​​: Ideal for high-stress environments (e.g., automotive, aerospace).
    • ​​Better Heat Dissipation​​: Suitable for high-power components (e.g., power supplies).
    • ​​Easier Prototyping & Repairs​​: Components are easier to replace than SMDs.

4. ​​Challenges​​

    • ​​Slower & More Expensive​​ than SMT due to drilling and soldering steps.
    • ​​Larger Footprint​​: Not ideal for ultra-compact designs.





​​Through-Hole vs. Surface-Mount (SMT) Assembly​:​

Feature Through-Hole Assembly (THT) Surface-Mount Assembly (SMT)
​Soldering Method​ Wave soldering or hand-soldering Reflow soldering
​Component Size​ Larger, bulkier Smaller, lightweight
​PCB Space Usage​ Requires drilled holes No holes needed (saves space)
​Strength​ High mechanical stability Less robust (unless glued)
​Cost & Speed​ Slower, higher cost Faster, more cost-effective
​Best For​ High-power, high-reliability applications High-density, compact designs





DQS Electronic Group is one of the leading EMS company in China, we provide PCB design, PCB manufacturing, PCB assembly service and testing. Welcome send us your Gerber file to get free quotation. Our email: sales@dqspcba.com
