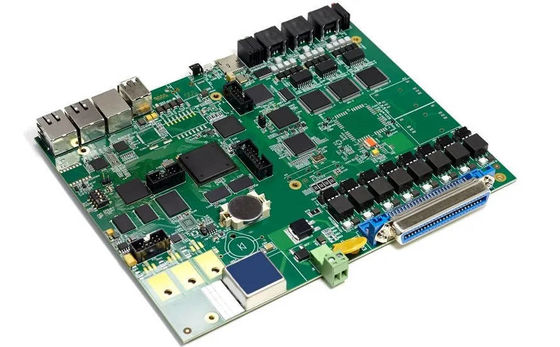

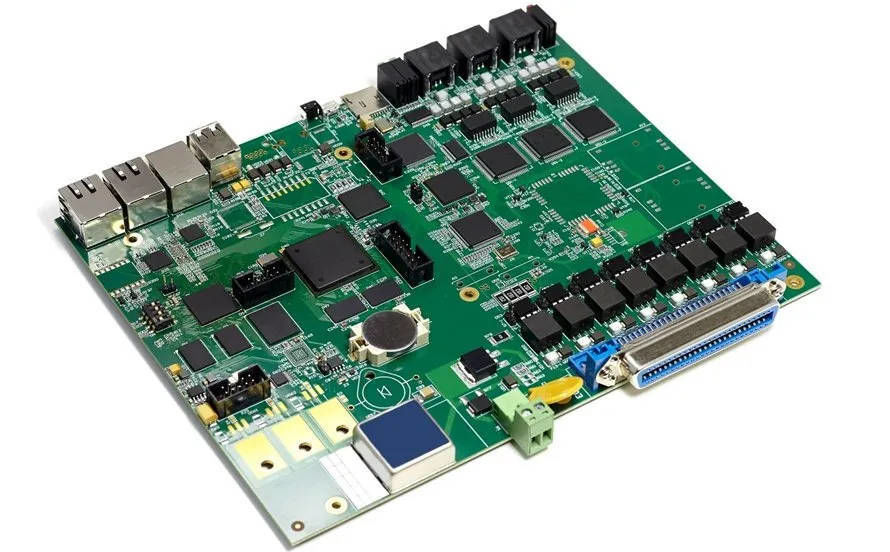

Custom Printed SMD Circuit Board PCB Assembly Low Latency For 5G Infrastructure

Custom Printed SMD Circuit Board PCB Assembly Low Latency For 5G Infrastructure

MOQ: 1
Price: Contact us
Payment Terms: T/T
Detail Information
Layer:
6L
Material:
FR-4
Board Thickness:
1.5 Mm
Min. Component Size:
0201
Min. Line Width/Spacing:
0.1mm
Pin Space:
0.2mm
PCB Assembly Method:
SMT/DIP
Application:
5G Infrastructure
Highlight:

5G smd circuit board

,

Low Latency smd circuit board

,

5G custom printed circuit board

Product Description



Low Latency Communications Telecom PCB Assembly for 5G Infrastructure



♦ What's Telecom PCB Assembly?



​​Telecom PCB Assembly​​ refers to the manufacturing and assembly of printed circuit boards (PCBs) specifically designed for telecommunications equipment, such as:

  • ​​5G/4G base stations​​
  • ​​Fiber-optic networking devices​​
  • ​​Satellite communication systems​​
  • ​​Routers, switches, and modems​​
  • ​​RF (Radio Frequency) and microwave systems​​

These PCBs require ​​high-frequency performance, signal integrity, and reliability​​ to handle fast data transmission, low latency, and harsh operational environments.





♦ Features of Telecom PCBs:



1. High-Frequency Materials​​

    • Use ​​low-loss laminates​​ (e.g., Rogers, Teflon, or Isola) to minimize signal degradation at GHz frequencies.
    • ​​Controlled impedance​​ traces to prevent signal reflection.

2. Multilayer & HDI (High-Density Interconnect) Designs​​

    • ​​8+ layers​​ for complex routing.
    • ​​Microvias & blind/buried vias​​ for compact, high-speed designs.

3. RF & Microwave Components​​

    • ​​Antennas, amplifiers, filters​​, and ​​MMICs (Monolithic Microwave ICs)​​.
    • ​​Shielding​​ to reduce electromagnetic interference (EMI).

4. Thermal Management​​

    • ​​Metal-core PCBs (e.g., aluminum)​​, heat sinks, or thermal vias to dissipate heat from high-power components.

​​5. Strict Compliance Standards​​

      • ​​IPC-A-600, IPC-6012​​ (for reliability).
      • ​​RoHS, REACH​​ (for environmental safety).
      • ​​FCC, CE, ITU-T​​ (for telecom regulations).



Process characteristics of Telecom PCB Assembly

​​1. Strict component selection

    • Prioritize the use of high-frequency low-loss materials (such as PTFE substrate PCB) and high-temperature resistant chips (working temperature -40℃~125℃);
    • RF components must support high-precision impedance control (such as 50Ω matching).

2. High-precision manufacturing requirements:

    • SMT patch accuracy must reach ±0.025mm (±0.05mm for ordinary PCBA) to ensure precise placement of tiny components (such as 01005 package resistors);
    • Laser drilling and micro-hole electroplating technology to achieve high-density interconnect (HDI) circuit boards.



♦ Technical Parameters



 PCB Assembly Capability



Item



                  Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

                      T>2mm





♦ One-Stop PCBA Solution



Custom Printed SMD Circuit Board PCB Assembly Low Latency For 5G Infrastructure 0 Custom Printed SMD Circuit Board PCB Assembly Low Latency For 5G Infrastructure 1 Custom Printed SMD Circuit Board PCB Assembly Low Latency For 5G Infrastructure 2 Custom Printed SMD Circuit Board PCB Assembly Low Latency For 5G Infrastructure 3
PCBA Prototype Industrial Control PCBA Telecom PCBA Medical PCBA
Custom Printed SMD Circuit Board PCB Assembly Low Latency For 5G Infrastructure 4 Custom Printed SMD Circuit Board PCB Assembly Low Latency For 5G Infrastructure 5 Custom Printed SMD Circuit Board PCB Assembly Low Latency For 5G Infrastructure 6 Custom Printed SMD Circuit Board PCB Assembly Low Latency For 5G Infrastructure 7
Automotive PCBA Consumer Electronic PCBA LED PCBA  Security PCBA





♦ Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
