Custom Electronic 1OZ Copper PCB Board Polyimide FR4 Material ENIG Surface

Custom Electronic 1OZ Copper PCB Board Polyimide FR4 Material ENIG Surface

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Supply Ability: 200,000+ m² PCB per Month
Detail Information
Layers:
4 Layer
Board Thickness:
Rigid:2.5mm;Flex:0.26+/-0.05mm
Copper Thickness:
1OZ
Base Material:
Polyimide+FR4
Min. Line Width/Space:
0.13/0.13mm
Min. Hole Size:
0.12mm
Surface Treatment:
ENIG
Application:
Medical Devices
Service:
One Stop Turnkey Include Firmware,PCB&PCBA,OEM Services Provided
Supply Ability:
200,000+ m² PCB per Month
Highlight:

custom copper pcb board

,

1OZ copper pcb board

,

Polyimide FR4 electronic pcb board

Product Description



High Reliability Rigid-Flex PCB Communications Equipment Bending Resistance PCB Manufacture







♦ What is Rigid-Flex PCB?




Rigid-Flex PCB is a composite structure circuit board that combines a rigid printed circuit board (PCB) and a flexible circuit board (FPC). It is mainly composed of two parts: rigid and flexible. The rigid layer is made of traditional PCB materials (such as FR-4), providing stable electrical performance and mechanical strength; the flexible layer is made of flexible circuit materials such as polyimide or polyester, which has high bending and folding resistance; the two are connected by special adhesives or welding processes.

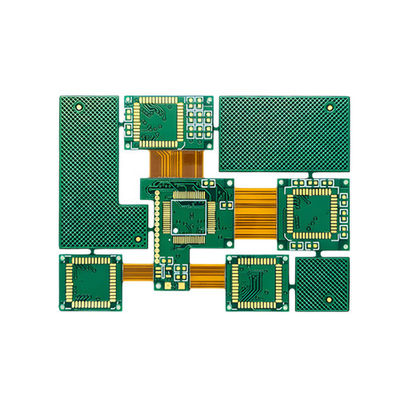

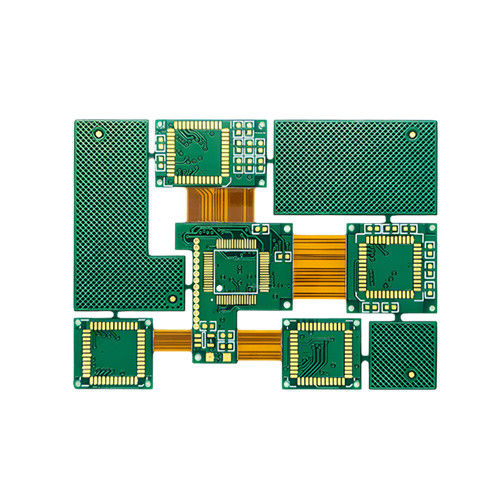

Custom Electronic 1OZ Copper PCB Board Polyimide FR4 Material ENIG Surface 0 Custom Electronic 1OZ Copper PCB Board Polyimide FR4 Material ENIG Surface 1 Custom Electronic 1OZ Copper PCB Board Polyimide FR4 Material ENIG Surface 2







Features of Rigid-Flex PCB

    • ​​Efficient wiring: High-density multi-layer design to meet the needs of complex circuits.

    • ​Widely used: Covering aerospace, medical, automotive, consumer electronics and other fields.

    • ​​Reduce failures: Reduce welding points and cable connection problems, improve product stability.

    • ​​Strong impact resistance: Resistant to high stress, suitable for harsh scenarios such as vibration and collision.





Applications of Rigid-Flex PCB

    • ​​Consumer electronics​​: smartphones (internal connections of folding screens), wearable devices (circuits inside smartwatch straps), tablet computers (circuit boards at hinges);
    • Industrial and medical​​: industrial sensors (detection modules that need to be bent and installed), medical implants (internal circuits of pacemakers), avionics equipment (control modules that need to resist vibration);
    • Automobile and transportation​​: battery management systems for new energy vehicles (BMS, adapted to complex battery pack layouts), on-board displays (foldable or curved screen connections), autonomous driving sensors (dynamic bending requirements);
    • ​Military and aerospace​​: satellite communication equipment (needs to be lightweight and radiation-resistant), aircraft control circuit boards (adaptable to high-vibration environments).





Technical Parameters



Item

Spec

Layers

1~64

Board Thickness

0.1mm-10 mm

Material

FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base,Ceramic, etc

Max Panel Size

800mm×1200mm

Min Hole Size

0.075mm

Min Line Width/Space

Standard: 3mil(0.075mm)  Advance: 2mil

Board Outline Tolerance

0.10mm

Insulation Layer Thickness

0.075mm--5.00mm

Out Layer Copper Thickness

18um--350um

Drilling Hole (Mechanical)

17um--175um

Finish Hole (Mechanical)

17um--175um

Diameter Tolerance (Mechanical)

0.05mm

Registration (Mechanical)

0.075mm

Aspect Ratio

17:01

Solder Mask Type

LPI

SMT Min. Solder Mask Width

0.075mm

Min. Solder Mask Clearance

0.05mm

Plug Hole Diameter

0.25mm--0.60mm




One-Stop PCBs Solution



Custom Electronic 1OZ Copper PCB Board Polyimide FR4 Material ENIG Surface 3 Custom Electronic 1OZ Copper PCB Board Polyimide FR4 Material ENIG Surface 4 Custom Electronic 1OZ Copper PCB Board Polyimide FR4 Material ENIG Surface 5 Custom Electronic 1OZ Copper PCB Board Polyimide FR4 Material ENIG Surface 6
PCB Prototype Felx PCB  Rigid-Flex PCB Ceramic PCB
Custom Electronic 1OZ Copper PCB Board Polyimide FR4 Material ENIG Surface 7 Custom Electronic 1OZ Copper PCB Board Polyimide FR4 Material ENIG Surface 8 Custom Electronic 1OZ Copper PCB Board Polyimide FR4 Material ENIG Surface 9 Custom Electronic 1OZ Copper PCB Board Polyimide FR4 Material ENIG Surface 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB
