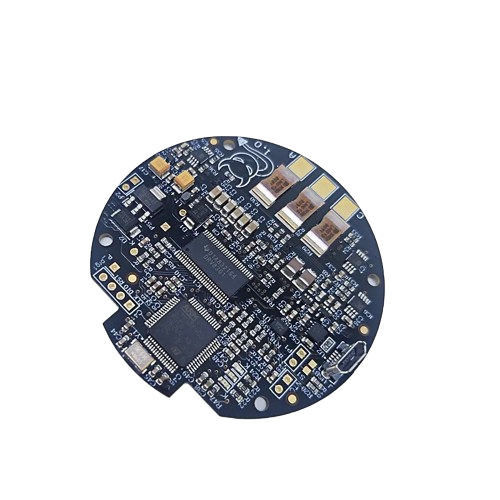

Consumer Electronic Printed Circuit Board Assembly PCBA Solutions For Smart Wearable Devices

Consumer Electronic Printed Circuit Board Assembly PCBA Solutions For Smart Wearable Devices

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Supply Ability: 200,000+ m² PCB per Month
Detail Information
Layer:
2 L
Min. Component Size:
0402
Board Thickness:
1.0 Mm
Surface Finish:
ENIG
Pin Space:
0.1mm
Application:
Consumer Electronics
Testing Method:
Flying Probe, ICT, Functional Test
Supply Ability:
200,000+ m² PCB per Month
Highlight:

Electronic printed circuit board assembly pcba

,

Smart printed circuit board assembly pcba

,

Wearable Devices pcb board electronics

Product Description

Consumer Electronic PCBA Solutions For High-performance Smart Wearable Devices





What is Consumer Electronics PCBA






Consumer Electronics PCBA is the "functional hub" and "technology carrier" of consumer electronics products.Carrier", directly determines the upper limit of the device's performance, functional implementation and user experience.







Features of Consumer Electronics PCBA

    • Highly integrated: can integrate a large number of electronic components to adapt to the multifunctional needs of consumer electronics products, such as smart phones PCBA integrated camera, touch screen and other functional modules.
    • Miniaturisation: to meet the thin and light design of consumer electronics, such as wearable devices PCBA size is small.
    • High-performance: to ensure stable operation of equipment, to achieve complex functions, such as computer graphics card PCBA to provide powerful graphics processing capabilities.





Applications of Consumer Electronics PCBA



Widely used in all kinds of consumer electronic products, such as smart phones, laptops, smart watches, TVs, stereos, game consoles, etc., to achieve the core function of the product.







♦ DQS's PCB Assembly Capability





Item



Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

     T>2mm







♦ One-Stop Electronic Manufacturing Including



 PCB Prototype

Quick Turn PCB

Single-Sided PCB

Double-Sided PCB

 Multilayer PCB

Rigid PCB

Flexible PCB

Rigid-Flex PCB Rigid-Flex PCB Aluminum PCB Metal Core PCB

Thick Copper PCB

HDI PCB

BGA PCB High TG PCB PCB Stencil Impedance Control PCB

PCB Assembly

High-Frequency PCB Bluetooth Circuit Board Automotive PCB USB Circuit Board Halogen-Free PCB

Antenna PCB





Core Competencies of DQS PCB Assembly



SMT

Consumer Electronic Printed Circuit Board Assembly PCBA Solutions For Smart Wearable Devices 0

DIP

Consumer Electronic Printed Circuit Board Assembly PCBA Solutions For Smart Wearable Devices 1

  • 13 automatic high-speed SMT line
  • 5 million points / day
  • FPC/Double sided mounted
  • Automatic conformal coating
  • 4 DIP line
  • Post-soldering700,000 points/day
  • Professional DIP plug-in team
Consumer Electronic Printed Circuit Board Assembly PCBA Solutions For Smart Wearable Devices 2 SMT Technology Consumer Electronic Printed Circuit Board Assembly PCBA Solutions For Smart Wearable Devices 3 PCBA OEM
  • Min package: 01005
  • Min pin: 0.3mm
  • Min BGA pitch: 0.3 mm



  •  Full turnkey PCB assembly
  • Partial turnkey PCB assembly
