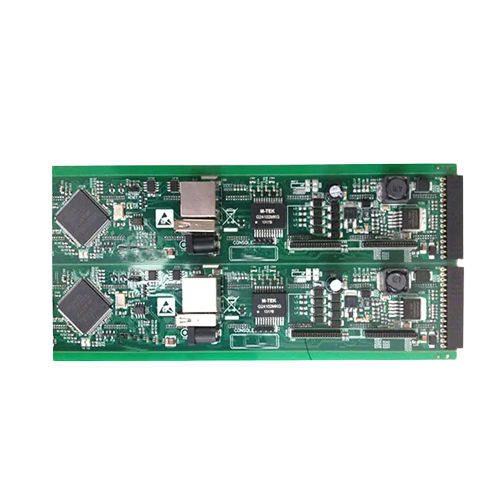

Anti Interference Multilayer Automotive PCBA RF PCB Manufacturing

MOQ:	1
Price:	Contact our PCB engineer
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Layer:

6 L

Min. Component Size:

0201

Board Thickness:

2.0 Mm

Surface Finish:

ENIG

Pin Space:

0.1mm

Application:

Automotive

Highlight:

anti interference Automotive PCBA

RF Automotive PCBA

multilayer rf pcb manufacturing

Product Description

High Performance Automotive PCBA For Advanced Driver Assistance Systems

♦ What's Automotive PCBA?

Automotive PCBA, is the core of automotive electronic systems.It fixes the electronic components on the PCB to form a complete circuit, which is used in various systems of the car.

♦ Features of Automotive PCBA:

High reliability: Adapt to the harsh environment of automobiles, such as -40℃~125℃ temperature, vibration, humidity, etc., to ensure long-term stable operation.Like the engine control unit (ECU) PCBA, need to accurately control the engine fuel injection, ignition timing and other key parameters under complex working conditions.
Strong anti-interference: it can resist the complex electromagnetic interference inside the car and ensure stable signal transmission.For example, in the intelligent driving system, PCBA should ensure that the signals between sensors, controllers, etc. are accurate.
Miniaturisation and high performance: to meet the demand for miniaturisation and intelligence in automotive electronic systems, and at the same time, to have high computing power, high data processing speed and other performance, in order to support autonomous driving and other functions.

♦ Types of Automotive PCB Assemblies:

Application	PCB Requirements	Examples
Engine Control Unit (ECU)	High-temperature resistance, EMI shielding	Fuel injection, ignition timing
Infotainment System	High-speed signal integrity, multilayer	Touchscreens, GPS, Bluetooth
ADAS (Radar/LiDAR)	RF/microwave PCBs, low-loss materials	Collision avoidance, adaptive cruise control
EV Battery Management (BMS)	High-current PCBs, thermal management	Cell balancing, charge monitoring
LED Lighting	Aluminum PCBs for heat dissipation	Headlights, interior lightin

♦ DQS's PCB Assembly Capability

Item				Normal	Special
SMT Assembly	PCB(used for SMT) specification	Length and Width( L* W)	Minimum	L≥3mm, W≥3mm	L＜2mm
		Length and Width( L* W)	Maximum	L≤800mm, W≤460mm	L ＞ 1200mm, W＞500mm
		Thickness( T)	Thinnest	0.2mm	T＜0.1mm
		Thickness( T)	Thickest	4 mm	T＞4.5mm
	SMT components specification	Outline Dimension	Min size	0201(0.6mm*0.3mm)	01005(0.3mm*0.2mm)
			Max size	200 * 125	200 * 125
			component thickness	T≤15mm	6.5mm＜T≤15mm
		QFP,SOP,SOJ (multi pins)	Min pin space	0.4mm	0.3mm≤Pitch＜0.4mm
		CSP/ BGA	Min ball space	0.5mm	0.3mm≤Pitch＜0.5mm
DIP Assembly	PCB specification	Length and Width( L* W)	Minimum	L≥50mm, W≥30mm	L＜50mm
		Length and Width( L* W)	Maximum	L≤1200mm, W≤450mm	L≥1200mm, W≥500mm
		Thickness( T)	Thinnest	0.8mm	T＜0.8mm
		Thickness( T)	Thickest	3.5mm	T＞2mm
