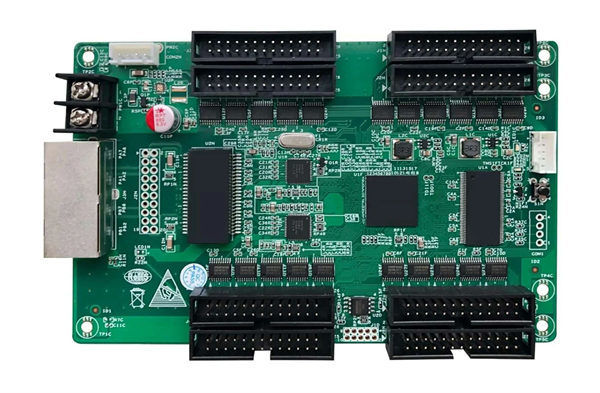

8 Layer Automated PCB Manufacturing PCBA Production FR4 TG200 Material

8 Layer Automated PCB Manufacturing PCBA Production FR4 TG200 Material

MOQ: 1
Payment Terms: T/T
Supply Ability: Post-soldering 700,000 points/day
Detail Information
Certification:
ISO, UL, IPC, Reach
Layer:
8 Layer
Material:
FR4 Tg200
Thickness:
1.5mm
Pin Space:
0.15mm
Min. Component Size:
0201
Min. Hole Size:
0.1mm
Assembly Process:
SMT+DIP
Application:
Drilling Equipment
Supply Ability:
Post-soldering 700,000 points/day
Highlight:

FR4 automated pcb manufacturing

,

TG200 automated pcb manufacturing

,

FR4 TG200 pcba production

Product Description



High Temperature and High Pressure Resistant Industrial PCBA Drilling Equipment PCBA





♦ What Is Industrial Control PCBA?



Industrial control PCBA (Printed Circuit Board Assembly) is a circuit board assembly designed for industrial automation scenarios, which is equivalent to the "brain" of industrial equipment. It integrates processors (such as ARM, DSP), sensor interfaces, communication modules (such as CAN, EtherCAT), actuator drive circuits, etc., to achieve accurate monitoring and control of industrial production processes (such as mechanical movement, temperature control, data acquisition, etc.).





♦ Industrial Control PCBA Process Characteristics

    • Components: Select industrial grade/military grade (temperature resistance -40℃~85℃, voltage resistance 100V+), reject consumer grade.

    • Triple-proof treatment: spray/dip triple-proof paint (moisture-proof/dust-proof/corrosion-proof), pass IP67 test.

    • Thermal design: high-power devices plus heat sink/thermal grease/aluminum substrate to prevent overheating.

    • Manufacturing accuracy: SMT patch ±0.05mm (normal ±0.1mm), DIP plug-in anti-false soldering.



♦ Applications:

    • ​​Manufacturing Automation​​: Automotive welding/assembly robots, electronic SMT placement machines, food packaging equipment, etc., to achieve high-precision production.
    • ​​Robots​​: Industrial robotic arms, AGV carts, collaborative robots, etc., to control movement and interaction.
    • ​​Energy and Power​​: Wind power/photovoltaic inverters, power grid monitoring, energy storage battery management (BMS), etc.
    • ​​Petrochemical/Metallurgy​​: Pumping units, reactor controls, rolling mill equipment, etc., to adapt to high temperature and high pressure environments.



♦ Technical Parameters



 PCB Assembly Capability



Item



                  Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

                      T>2mm









♦ One-Stop PCBA Solution



8 Layer Automated PCB Manufacturing PCBA Production FR4 TG200 Material 0 8 Layer Automated PCB Manufacturing PCBA Production FR4 TG200 Material 1 8 Layer Automated PCB Manufacturing PCBA Production FR4 TG200 Material 2 8 Layer Automated PCB Manufacturing PCBA Production FR4 TG200 Material 3
PCBA Prototype Industrial Control PCBA Telecom PCBA Medical PCBA
8 Layer Automated PCB Manufacturing PCBA Production FR4 TG200 Material 4 8 Layer Automated PCB Manufacturing PCBA Production FR4 TG200 Material 5 8 Layer Automated PCB Manufacturing PCBA Production FR4 TG200 Material 6 8 Layer Automated PCB Manufacturing PCBA Production FR4 TG200 Material 7
Automotive PCBA Consumer Electronic PCBA LED PCBA  Security PCBA






♦ Advantages of DQS Team

  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
