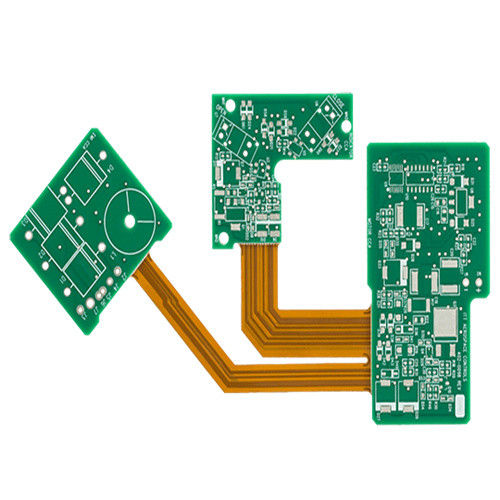

6 Layer Rigid Flex PCB Electronic Board Printed Circuit Board Assembly Services

6 Layer Rigid Flex PCB Electronic Board Printed Circuit Board Assembly Services

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Supply Ability: 200,000+ m² PCB per Month
Detail Information
Layers:
6 Layer
Board Thickness:
Rigid:2.5mm;Flex:0.26+/-0.05mm
Copper Thickness:
1OZ
Base Material:
Polyimide+FR4
Min. Line Width/Space:
0.10/0.10mm
Min. Hole Size:
0.12mm
Application:
Medical Devices
Supply Ability:
200,000+ m² PCB per Month
Highlight:

6 Layer pcb electronic board

,

pcb electronic board Assembly

,

PCB printed circuit board assembly services

Product Description

High Temperature Resistant Rigid-Flex PCB High Speed Signal Transmission Special Custom





♦ What is Rigid-Flex PCB?




Rigid-Flex PCB is a composite structure circuit board that combines a rigid printed circuit board (PCB) and a flexible circuit board (FPC). It is mainly composed of two parts: rigid and flexible. The rigid layer is made of traditional PCB materials (such as FR-4), providing stable electrical performance and mechanical strength; the flexible layer is made of flexible circuit materials such as polyimide or polyester, which has high bending and folding resistance; the two are connected by special adhesives or welding processes.





6 Layer Rigid Flex PCB Electronic Board Printed Circuit Board Assembly Services 0 6 Layer Rigid Flex PCB Electronic Board Printed Circuit Board Assembly Services 1 6 Layer Rigid Flex PCB Electronic Board Printed Circuit Board Assembly Services 2



Features of Rigid-Flex PCB

    • Rigid-flexible combination: the rigid part supports the core components, and the flexible part is bent.

    • ​​Space saving: replace the cable and reduce the size of the device (suitable for thin and light design).

    • ​​High bending resistance: the flexible part can be bent repeatedly (millions of times of life).

    • ​​Signal stability: the rigid part ensures high-speed signal transmission and reduces interference.

    • ​​Strong reliability: anti-vibration, high temperature resistance, and adaptable to complex environments.

    • Simplified assembly: integrated design, reducing welding points and reducing costs.



Applications of Rigid-Flex PCB



    • ​​Consumer electronics​​: smartphones (internal connections of folding screens), wearable devices (circuits inside smartwatch straps), tablet computers (circuit boards at hinges);
    • Industrial and medical​​: industrial sensors (detection modules that need to be bent and installed), medical implants (internal circuits of pacemakers), avionics equipment (control modules that need to resist vibration);
    • Automobile and transportation​​: battery management systems for new energy vehicles (BMS, adapted to complex battery pack layouts), on-board displays (foldable or curved screen connections), autonomous driving sensors (dynamic bending requirements);
    • ​Military and aerospace​​: satellite communication equipment (needs to be lightweight and radiation-resistant), aircraft control circuit boards (adaptable to high-vibration environments).



Technical Parameters



Item

Spec

Layers

1~64

Board Thickness

0.1mm-10 mm

Material

FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base,Ceramic, etc

Max Panel Size

800mm×1200mm

Min Hole Size

0.075mm

Min Line Width/Space

Standard: 3mil(0.075mm)  Advance: 2mil

Board Outline Tolerance

0.10mm

Insulation Layer Thickness

0.075mm--5.00mm

Out Layer Copper Thickness

18um--350um

Drilling Hole (Mechanical)

17um--175um

Finish Hole (Mechanical)

17um--175um

Diameter Tolerance (Mechanical)

0.05mm

Registration (Mechanical)

0.075mm

Aspect Ratio

17:01

Solder Mask Type

LPI

SMT Min. Solder Mask Width

0.075mm

Min. Solder Mask Clearance

0.05mm

Plug Hole Diameter

0.25mm--0.60mm



One-Stop PCBs Solution



6 Layer Rigid Flex PCB Electronic Board Printed Circuit Board Assembly Services 3 6 Layer Rigid Flex PCB Electronic Board Printed Circuit Board Assembly Services 4 6 Layer Rigid Flex PCB Electronic Board Printed Circuit Board Assembly Services 5 6 Layer Rigid Flex PCB Electronic Board Printed Circuit Board Assembly Services 6
PCB Prototype Felx PCB  Rigid-Flex PCB Ceramic PCB
6 Layer Rigid Flex PCB Electronic Board Printed Circuit Board Assembly Services 7 6 Layer Rigid Flex PCB Electronic Board Printed Circuit Board Assembly Services 8 6 Layer Rigid Flex PCB Electronic Board Printed Circuit Board Assembly Services 9 6 Layer Rigid Flex PCB Electronic Board Printed Circuit Board Assembly Services 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB





Advantages of DQS Team

  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
