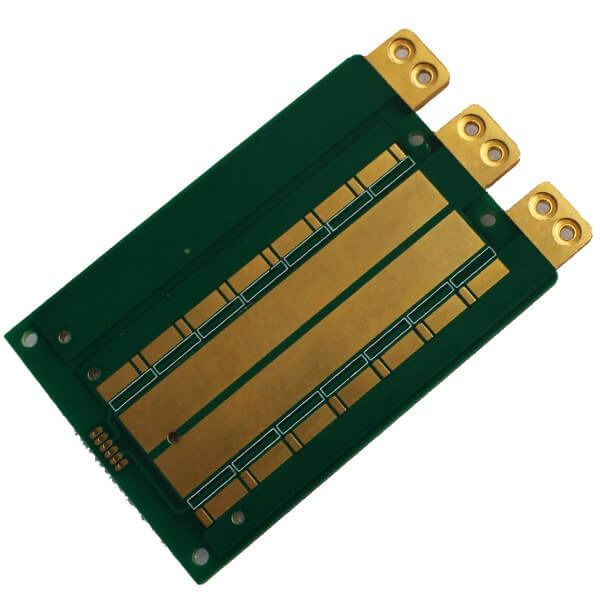

5oz Large Thick Copper PCB Board Full Turnkey Assembly For Medical Device

MOQ:	1
Price:	Send us Gerber file for free quotation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Layer:

6 Layer

Material:

Fr4

Thickness:

2.5mm

Copper Thickness:

5OZ

Surface Treatment:

Immersion Gold

Min. Line Width/Space:

0.2/0.2mm

Application:

Electronic Products

Certificate:

UL,IATF16949,ISO&Reach

Highlight:

5oz Thick Copper PCB

full turnkey Thick Copper PCB

5oz turnkey pcb assembly

Product Description

5OZ Thick Copper Large PCB Board for Medical Device

♦ What is Heavy Copper PCB?

A Heavy Copper PCB is a specialized printed circuit board that uses exceptionally thick copper layers (typically ≥ 3 oz/ft², up to 20 oz/ft² or more) for high-current, high-power, or high-thermal applications. Unlike standard PCBs (which use 1-2 oz copper), heavy copper PCBs can handle extreme electrical loads, heat dissipation, and mechanical stress.

♦ Features of Heavy Copper PCB

✅ High Current Capacity – Supports 10A–100A+ per trace (vs. ~1–5A in standard PCBs).
✅ Enhanced Heat Dissipation – Reduces hotspots by spreading heat through thick copper planes.
✅ Strong Mechanical Structure – Resists thermal expansion, vibration, and warping.
✅ Space Efficiency – Fewer layers needed compared to parallel traces in standard PCBs.
✅ High Reliability – Ideal for harsh environments (industrial, automotive, aerospace).

♦ Heavy Copper PCB vs. Standard PCB

Parameter	Heavy Copper PCB	Standard PCB
Copper Thickness	3 oz – 20+ oz/ft²	0.5–2 oz/ft²
Current Handling	10A–100A+	<5A
Thermal Performance	Excellent	Moderate
Cost	Higher (complex manufacturing)	Lower
Typical Applications	Power electronics, motor drives	Consumer electronics, low-power devices

Heavy Copper PCBs are essential for high-power, high-reliability applications where standard PCBs would fail. They excel in thermal management, current handling, and durability, making them ideal for industries like automotive, aerospace, and industrial automation.

Need a Heavy Copper PCB quote? Let me know your specs (current rating, layers, material), and I can recommend the best manufacturers!

♦ Technical Parameters

MC PCB Capability
Item		Standard	Advance
Layers		1-2 layers	4-6 layers
Max Panel Size		400*800mm	600*1200mm
Min Panel Size		5*5mm	5*5mm
Board Thickness		0.6mm-4.0mm	4.0mm-7.0mm
Min. Line Width/Space		3mil/3mil	2mil/2mil
Min. Hole Size		0.1mm	0.075mm
Copper Thickness		0.5-4oz	15oz
Tolerance	Line Width	±10%	±5%
	PTH Hole Size	±0.075mm	±0.05mm
	NPTH Hole Size	± 0.05mm	±0.025mm
	Hole Position	±0.05mm	±0.025mm
	Outline	±0.1mm	± 0.075mm
	Board Thickness	±10%	±5%
Thermal Conductivity		1W/mk, 2W/mk, 3w/mk	5W/mk, 8W/mk
Impedance Control		± 10%	± 8%
Bow and Twist		0.75%	0.50%
Board Material		Al Base, Cu Base, Fe Base, Ceramic Base
Surface Finish		HAL(with Pb free), Plated Ni/Au, ENIG, Immersion Tin,Immersion Ag OSP etc.
Solder Mask		Yellow, Red, White, Black, Blue, Green, Grey,etc.
Legend Color		White, Black, Yellow Grey, Sliver Grey, etc.
Certification		UL, IATF16949, ISO, RoHs & Reach

♦ One-Stop PCBs Solution


PCB Prototype	Felx PCB	Rigid-Flex PCB	Aluminium PCB

Heavy Copper PCB	HDI PCB	High Frequency PCB	High TG PCB

♦ Advantages of DQS Team

On-time Delivery:

- Owned PCBA factories 15,000 ㎡
- 13 fully automatic SMT lines
- 4 DIP assembly lines

2. Quality Guaranteed:

- IATF, ISO, IPC, UL standards
- Online SPI, AOI, X-Ray Inspection
- The qualified rate of products reach 99.9%

3. Premium Service:

- 24H reply your inquiry；
- Perfect after-sales service system；
- From prototype to mass production
