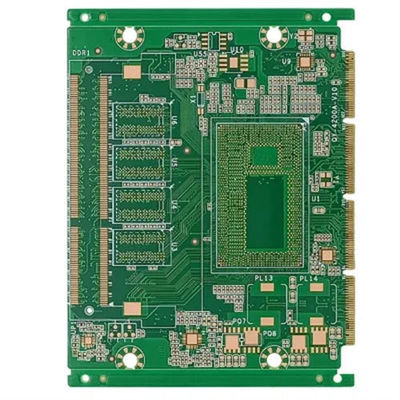

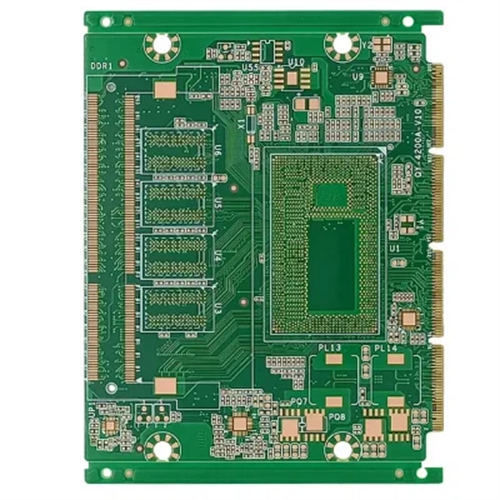

2oz Gold Finger High Tg 180 PCB Electronic Circuit Board Welding

2oz Gold Finger High Tg 180 PCB Electronic Circuit Board Welding

MOQ: 1
Price: Send us Gerber file for free quotation
Payment Terms: T/T
Detail Information
Layer:
14 Layer
Base Material:
FR4 Tg180
Thickness:
2.0 Mm
Copper Thickness:
2oz
Min. Line Width/Space:
0.10/0.10mm
Surface Treatment:
ENIG
Service:
One Stop Turnkey Service
Certificate:
UL,IATF16949,ISO&Reach
Highlight:

Gold Finger High TG PCB

,

2oz High TG PCB

,

Tg180 electronic circuit board

Product Description

Gold Finger Reliable Welding Support High Density Interconnection Technology High Tg PCB



What's High-Tg?



Tg refers to the glass transition temperature. When the substrate is exposed to high temperatures, it will change from a glass state to a rubber state. High Tg PCB refers to a circuit board that can withstand higher temperatures without deforming or turning into rubber. Materials with a glass transition temperature above 170°C are usually classified as high Tg PCBs, those above 150°C are mid-range Tg PCBs, and those above 130°C are low Tg PCBs.



2oz Gold Finger High Tg 180 PCB Electronic Circuit Board Welding 0 2oz Gold Finger High Tg 180 PCB Electronic Circuit Board Welding 1 2oz Gold Finger High Tg 180 PCB Electronic Circuit Board Welding 2





♦ Features of High-Tg PCB?

    • ​​High heat resistance​​: It can maintain stable physical and electrical properties in high temperature environments (such as higher soldering temperatures in lead-free processes), and reduce the floating phenomenon of PCB pads during infrared heat melting, welding and thermal shock.
    • ​​Low coefficient of thermal expansion (CTE): It can reduce warping and deformation caused by temperature, prevent the degradation of plated through-hole performance and copper breakage in multi-layer PCBs, and improve product reliability.
    • ​​Excellent mechanical strength​​: Good mechanical strength at high temperatures, more reliable during transportation, installation and use, and reduce damage caused by mechanical stress.



♦ Application fields of High-Tg PCB

    • Communication equipment​​: such as mobile communication base stations, routers, switches, etc., to achieve high-speed signal transmission and stable electrical connection.
    • ​​Medical equipment​​: such as medical imaging equipment, to ensure safe and stable operation under harsh conditions such as high temperature and high humidity.
    • ​​Automotive electronics​​: used for automotive electronic components such as engine control units to withstand high temperatures during vehicle operation.
    • ​​Industrial control​​: such as programmable logic controllers (PLCs), to ensure stable operation of equipment during long-term manufacturing processes.
      ​​



Technical Parameters



Item

Specification

Laers

1~32

Board thickness

0.1mm-7.0mm

Material

FR-4,CEM-1/CEM-3,PI,High Tg,Rogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSP,HASL,Imm Gold/Nickel/Ag, Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH:±0.05 NPTH:±0.025

Certificate

UL,ISO 9001,ISO14001,IATF16949

Special request

Blind hole+Gold finger  + BGA

Material Suppilers

 Shengyi, KB, Nanya, ITEQ,etc.




One-Stop PCBs Solution



2oz Gold Finger High Tg 180 PCB Electronic Circuit Board Welding 3 2oz Gold Finger High Tg 180 PCB Electronic Circuit Board Welding 4 2oz Gold Finger High Tg 180 PCB Electronic Circuit Board Welding 5 2oz Gold Finger High Tg 180 PCB Electronic Circuit Board Welding 6
PCB Prototype Felx PCB  Rigid-Flex PCB Aluminium PCB
2oz Gold Finger High Tg 180 PCB Electronic Circuit Board Welding 7 2oz Gold Finger High Tg 180 PCB Electronic Circuit Board Welding 8 2oz Gold Finger High Tg 180 PCB Electronic Circuit Board Welding 9 2oz Gold Finger High Tg 180 PCB Electronic Circuit Board Welding 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB






Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
