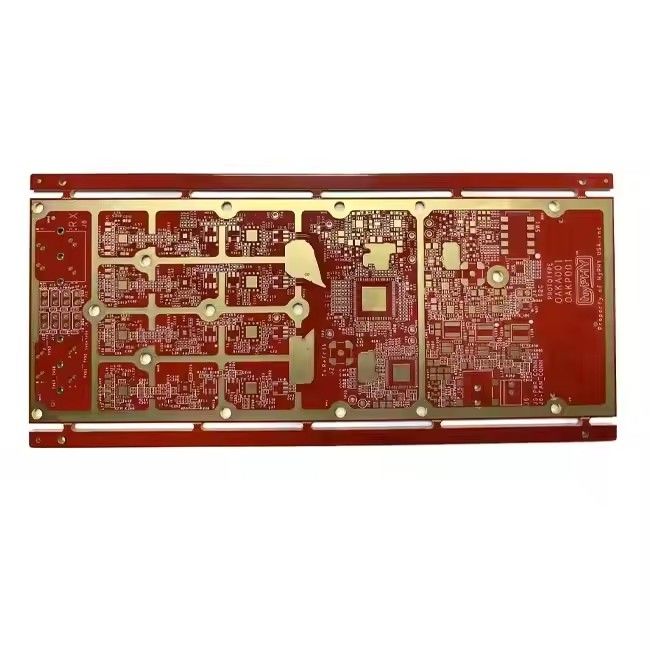

2mm PTEF FR4 High Frequency PCB Copper Circuit Board Mass Production

2mm PTEF FR4 High Frequency PCB Copper Circuit Board Mass Production

MOQ: 1
Price: Send us Gerber file for free quotation
Payment Terms: T/T
Detail Information
Layer:
18 Layer
Material:
PTEF+FR4
Thickness:
2.0 Mm
Min. Line Width/Space:
0.1/0.1mm
Copper Thickness:
1.2OZ
Surface Treatment:
Immersion Gold
Application:
Power Detection System
Certificate:
UL & IPC Standard & ISO
Highlight:

2mm High Frequency PCB

,

PTEF FR4 High Frequency PCB

,

PTEF FR4 copper circuit board

Product Description



Strong Impedance Control High Frequency PCB Power Detection System



What's High-Frequency PCB?



High-frequency PCB is a special circuit board designed for high-frequency electromagnetic scenes, suitable for high-frequency (frequency>300MHz, corresponding to wavelength <1 meter) and microwave (frequency>3GHz, corresponding to wavelength <0.1 meter) fields. It is based on microwave substrate copper clad laminate, combined with some processes of ordinary rigid circuit board manufacturing, or made through special processing.



2mm PTEF FR4 High Frequency PCB Copper Circuit Board Mass Production 0 2mm PTEF FR4 High Frequency PCB Copper Circuit Board Mass Production 1 2mm PTEF FR4 High Frequency PCB Copper Circuit Board Mass Production 2



♦ Features of High-Frequency PCB

    • Special materials: use low Dk/Df substrates such as PTFE, ceramic filling materials, LCP, etc. to reduce signal attenuation (PTFE is the first choice for 5G).

    • Precise transmission: impedance control of ±5%, micron-level line accuracy, 30%+ loss reduction in millimeter wave band, and excellent phase stability.

    • Complex process: laser drilling accuracy of ±3μm, plasma etching instead of pickling, multi-layer board integrated passive devices, and high-yield production in dust-free workshops.

    • Strong heat dissipation: metal substrate + thermal simulation + phase change material, adapting to extreme environments from -55℃ to 125℃.



High-frequency PCB design principles

    • Material selection: low Dk (such as PTFE), low Df materials, matching frequency requirements, taking into account thermal stability and copper foil bonding.

    • Wiring rules: 45° routing, equal-length differential pairs, short and straight paths, control line width/spacing, reduce crosstalk and reflection.

    • Power ground design: multi-layer board power/ground layers are adjacent, decoupling capacitors are added nearby, and analog/digital ground is isolated by partition.

    • Stacking structure: 4 layers or more are preferred, and the middle layer is used as the power/ground plane to reduce parasitic parameters and shorten the signal path.



Technical Parameters



Item

Specification

Laers

1~32

Board thickness

0.1mm-7.0mm

Material

FR-4,CEM-1/CEM-3,PI,High Tg,Rogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSP,HASL,Imm Gold/Nickel/Ag, Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH:±0.05 NPTH:±0.025

Certificate

UL,ISO 9001,ISO14001,IATF16949

Special request

Blind hole+Gold finger  + BGA

Material Suppilers

 Shengyi, KB, Nanya, ITEQ,etc.




One-Stop PCBs Solution



2mm PTEF FR4 High Frequency PCB Copper Circuit Board Mass Production 3 2mm PTEF FR4 High Frequency PCB Copper Circuit Board Mass Production 4 2mm PTEF FR4 High Frequency PCB Copper Circuit Board Mass Production 5 2mm PTEF FR4 High Frequency PCB Copper Circuit Board Mass Production 6
PCB Prototype Felx PCB  Rigid-Flex PCB Aluminium PCB
2mm PTEF FR4 High Frequency PCB Copper Circuit Board Mass Production 7 2mm PTEF FR4 High Frequency PCB Copper Circuit Board Mass Production 8 2mm PTEF FR4 High Frequency PCB Copper Circuit Board Mass Production 9 2mm PTEF FR4 High Frequency PCB Copper Circuit Board Mass Production 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB





Advantages of DQS Team

  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
