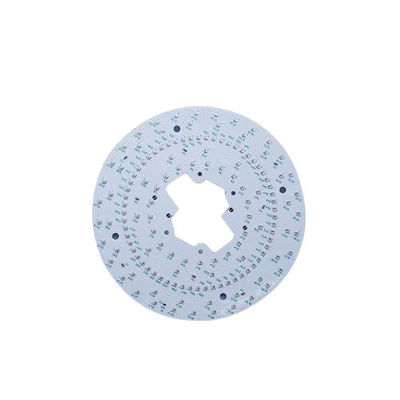

2.0mm Single Sided OSP Lighting PCB Assembly For Led Street Lights Components

2.0mm Single Sided OSP Lighting PCB Assembly For Led Street Lights Components

MOQ: 1
Payment Terms: T/T
Detail Information
Layer:
1 L
Material:
Al
Board Thickness:
2.0mm
Surface Finish:
OSP
Pin Space:
0.25mm
Application:
Street Lights
Highlight:

Lighting PCB Assembly components

,

Single Sided Lighting PCB Assembly

,

OSP street light led pcb

Product Description

Single-Sided Lighting PCB Assembly for Street Lights



♦ What is Lighting PCB Assembly?



​Lighting PCB Assembly is a specialized electronic assembly that integrates circuit boards with lighting components (e.g., LEDs, drivers) and control systems. It serves as the core functional unit in diverse lighting applications, combining electrical connectivity, thermal management, and intelligent control to enable efficient, durable, and feature-rich lighting solutions.



♦ Features of Lighting PCBA:

    • ​​Intelligent control​​: Some lighting PCBAs support intelligent sensing (such as automatic switching of lights when a person approaches) and remote dimming, timing, scene presets and other functions, and can achieve intelligent linkage of the whole house through mobile phones or voice.

    • Dimming and speed regulation: Some Lighting PCBAs use advanced dimming and speed regulation technology, which allows users to accurately adjust the light intensity and equipment operation speed according to their needs, and obtain a comfortable lighting experience.

    • High sensitivity and accuracy: Take the sensor footlights PCBA as an example, its design team has carefully researched and developed to ensure that the product has high sensitivity and accuracy, and can accurately sense human body movements.

    • Elegant Appearance Design: Some companies pay attention to the appearance design when designing Lighting PCBAs, so that they can harmonise with the surrounding environment and become part of the interior decoration.





♦ Applications of Lighting PCBA:

    • Home Lighting: Like all kinds of lamps and lanterns in the family, such as chandeliers, wall lamps, table lamps, etc. can be equipped with corresponding Lighting PCBA to achieve intelligent control.

    • Commercial Lighting: Widely used in the lighting system of commercial places such as shopping malls, hotels, office buildings, etc. Lighting can be controlled according to different scenes and time to create the right atmosphere.

    • Public Lighting: Used in lighting facilities in streets, parks, squares and other public places to achieve centralised control and intelligent management through Lighting PCBA, improving lighting efficiency and energy saving.



♦ Technical Parameters



 PCB Assembly Capability



Item



                  Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

                      T>2mm





♦ One-Stop PCBA Solution



2.0mm Single Sided OSP Lighting PCB Assembly For Led Street Lights Components 0 2.0mm Single Sided OSP Lighting PCB Assembly For Led Street Lights Components 1 2.0mm Single Sided OSP Lighting PCB Assembly For Led Street Lights Components 2 2.0mm Single Sided OSP Lighting PCB Assembly For Led Street Lights Components 3
PCBA Prototype Industrial Control PCBA Telecom PCBA Medical PCBA
2.0mm Single Sided OSP Lighting PCB Assembly For Led Street Lights Components 4 2.0mm Single Sided OSP Lighting PCB Assembly For Led Street Lights Components 5 2.0mm Single Sided OSP Lighting PCB Assembly For Led Street Lights Components 6 2.0mm Single Sided OSP Lighting PCB Assembly For Led Street Lights Components 7
Automotive PCBA Consumer Electronic PCBA LED PCBA  Security PCBA







Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
