1OZ 1.0mm Multilayer Rigid Flexible PCB Substrate PI PET Material

1OZ 1.0mm Multilayer Rigid Flexible PCB Substrate PI PET Material

MOQ: 1
Price: Inquiry Us
Payment Terms: T/T
Detail Information
Layer:
12 Layer
Board Thickness:
1.0mm
Material:
PI + PET
Finished Copper:
1OZ
Min Line Width/Spacing:
0.1/0.1 Mm
Surface Treatment:
OSP/HASL/ENIG
Application:
Automobile Engine Control
Certificate:
UL,IATF16949,ISO&Reach
Highlight:

1OZ flexible pcb substrate

,

PI PET flexible pcb substrate

,

1.0mm pcb flex rigid

Product Description

Fine Lines Flexible PCB Multilayer Stacking and Precise Alignment



What is Flexible PCB



​Flexible PCB (FPC)​​, also called a ​​"soft board"​​ or ​​flexible circuit​​, is a type of printed circuit board (PCB) made from ​​flexible insulating materials​​, such as ​​polyimide (PI)​​ or ​​polyester (PET)​​, instead of rigid fiberglass (FR4). This unique construction allows FPCs to ​​bend, fold, and twist​​ without breaking, enabling ​​compact, lightweight, and space-saving designs​​ in modern electronics.

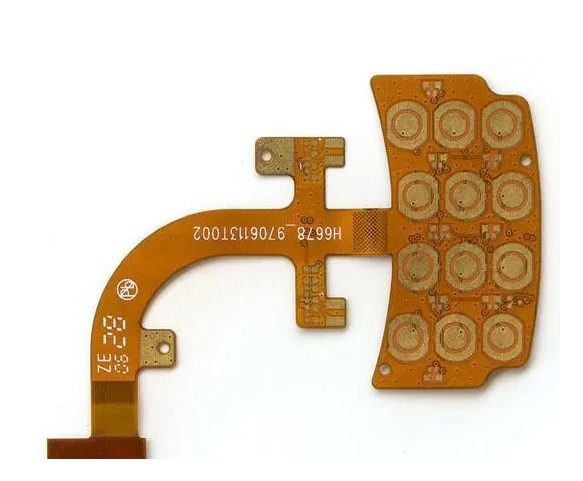

1OZ 1.0mm Multilayer Rigid Flexible PCB Substrate PI PET Material 0 1OZ 1.0mm Multilayer Rigid Flexible PCB Substrate PI PET Material 1 1OZ 1.0mm Multilayer Rigid Flexible PCB Substrate PI PET Material 2



Features of Flexible PCB

    • ​​Ultra-thin and light: PI substrate, weight reduction and space saving.
    • ​​High flexibility and bending resistance: can be bent repeatedly (more than 10,000 times).
    • ​​Miniaturization: supports micron-level circuits and high-density integration of components.
    • ​​3D adaptation: fits complex shapes and reduces assembly processes.
    • ​​Stable and reliable: resistant to high and low temperatures (-40℃~+125℃), vibration and shock.



♦ Difficulties in Flexible PCB Manufacturing

    • Delicate substrate: thin and soft, easy to wrinkle and crack during processing.
    • Ultra-fine lines: micron-level line width, easy to break or connect incorrectly.
    • Difficult alignment: multiple layers are easily misaligned.
    • Difficult surface treatment: both bendable and conductive.
    • Troublesome detection: internal problems are difficult to find, and detection is expensive and time-consuming.



Applications of Flexible PCB

    • ​​Smartphones & Wearables​​ (foldable screens, flexible displays);

    • ​​Laptops & Tablets​​ (hinge connections, battery flex cables);

    • ​Automotive Electronics​​ (sensors, lighting, dashboard controls);

    • ​​Medical Devices​​ (implantable electronics, diagnostic equipment);

    • ​​Aerospace & Defense​​ (lightweight, high-reliability circuits).



♦ Technical Parameters



Item

Spec

Layers

1~64

Board Thickness

0.1mm-10 mm

Material

FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base,Ceramic, etc

Max Panel Size

800mm×1200mm

Min Hole Size

0.075mm

Min Line Width/Space

Standard: 3mil(0.075mm)  Advance: 2mil

Board Outline Tolerance

0.10mm

Insulation Layer Thickness

0.075mm--5.00mm

Out Layer Copper Thickness

18um--350um

Drilling Hole (Mechanical)

17um--175um

Finish Hole (Mechanical)

17um--175um

Diameter Tolerance (Mechanical)

0.05mm

Registration (Mechanical)

0.075mm

Aspect Ratio

17:01

Solder Mask Type

LPI

SMT Min. Solder Mask Width

0.075mm

Min. Solder Mask Clearance

0.05mm

Plug Hole Diameter

0.25mm--0.60mm







One-Stop PCBs Solution



1OZ 1.0mm Multilayer Rigid Flexible PCB Substrate PI PET Material 3 1OZ 1.0mm Multilayer Rigid Flexible PCB Substrate PI PET Material 4 1OZ 1.0mm Multilayer Rigid Flexible PCB Substrate PI PET Material 5 1OZ 1.0mm Multilayer Rigid Flexible PCB Substrate PI PET Material 6
PCB Prototype Felx PCB  Rigid-Flex PCB Ceramic PCB
1OZ 1.0mm Multilayer Rigid Flexible PCB Substrate PI PET Material 7 1OZ 1.0mm Multilayer Rigid Flexible PCB Substrate PI PET Material 8 1OZ 1.0mm Multilayer Rigid Flexible PCB Substrate PI PET Material 9 1OZ 1.0mm Multilayer Rigid Flexible PCB Substrate PI PET Material 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB





Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
