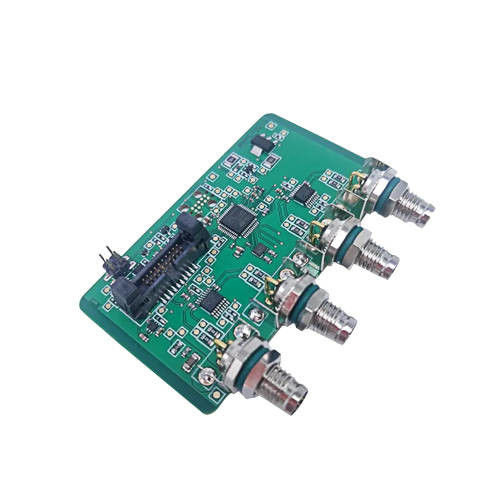

1.71mm ENIG TG170 Industry PCBA Assembly 4 Layer For Medical Equipment

1.71mm ENIG TG170 Industry PCBA Assembly 4 Layer For Medical Equipment

MOQ: 1
Payment Terms: T/T
Supply Ability: Post-soldering 700,000 points/day
Detail Information
Certification:
ISO, UL, IPC, Reach
Layer:
4L
Material:
FR4 TG170
Board Thickness:
1.71 Mm
Surface Finish:
ENIG
Pin Space:
0.2mm
Application:
Industrial Control
Supply Ability:
Post-soldering 700,000 points/day
Highlight:

TG170 Industrial PCBA

,

ENIG Industrial PCBA

,

ENIG medical pcb assembly

Product Description



ENIG TG170  Industry Control PCBA





♦ What Is Industrial Control PCBA?



Industrial control PCBA is the "brain" of industrial equipment, responsible for receiving signals, processing data and controlling equipment operation.







Features of Industrial Control PCBA:

  • Resistant and durable: can adapt to high temperature, humidity, electromagnetic interference and other harsh industrial environments, strong stability.
  • Accurate and fast: high control accuracy and fast response speed to ensure efficient operation of production lines and equipment.





♦ Applications:

  • Factory automation (e.g., robotic arms, conveyor belt control);
  • Energy management (e.g. smart meters, grid monitoring);
  • Automotive electronics (engine control, in-vehicle systems);
  • Medical equipment (testing instruments, imaging equipment).





♦ Technical Parameters



 PCB Assembly Capability



Item



                  Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

                      T>2mm










♦ One-Stop PCBA Solution



1.71mm ENIG TG170 Industry PCBA Assembly 4 Layer For Medical Equipment 0 1.71mm ENIG TG170 Industry PCBA Assembly 4 Layer For Medical Equipment 1 1.71mm ENIG TG170 Industry PCBA Assembly 4 Layer For Medical Equipment 2 1.71mm ENIG TG170 Industry PCBA Assembly 4 Layer For Medical Equipment 3
PCBA Prototype Industrial Control PCBA Telecom PCBA Medical PCBA
1.71mm ENIG TG170 Industry PCBA Assembly 4 Layer For Medical Equipment 4 1.71mm ENIG TG170 Industry PCBA Assembly 4 Layer For Medical Equipment 5 1.71mm ENIG TG170 Industry PCBA Assembly 4 Layer For Medical Equipment 6 1.71mm ENIG TG170 Industry PCBA Assembly 4 Layer For Medical Equipment 7
Automotive PCBA Consumer Electronic PCBA LED PCBA  Security PCBA



♦ Advantages of DQS Team

  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
