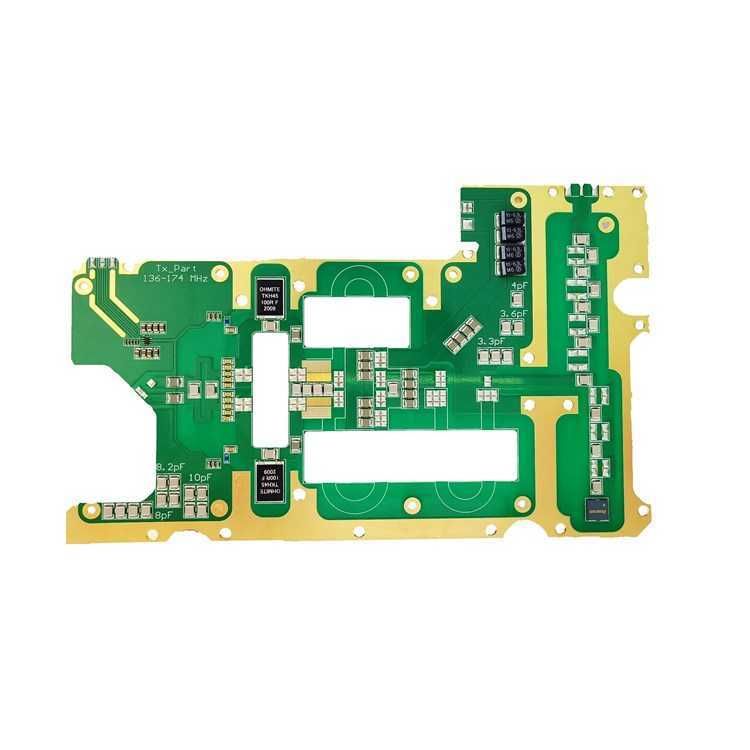

High Frequency PCB 8 Layer PCB with Rogers Material
♦ What's High-Frequency PCB?
A High-Frequency PCB is a specialized circuit board designed to carry signals in the radio frequency (RF), microwave, or millimeter-wave ranges (typically 500 MHz to 100+ GHz). These PCBs are engineered to minimize signal loss, interference, and distortion, making them critical for advanced wireless, radar, and high-speed digital applications.
♦ Key Features of High-Frequency PCBs
✅ Low Dielectric Loss – Uses materials with a stable dielectric constant (Dk) to reduce signal attenuation.
✅ Controlled Impedance – Precise trace geometry ensures consistent impedance (e.g., 50Ω or 75Ω).
✅ Low Signal Skew – Minimizes timing mismatches in high-speed signals.
✅ Thermal Stability – Resists performance drift under temperature fluctuations.
✅ Low Surface Roughness – Smoother copper reduces signal loss at high frequencies.
♦ Materials Used in High-Frequency PCBs
High-frequency PCBs require low-loss dielectric materials instead of standard FR-4. Common options include:
♦ Technical Parameters
Item |
Specification |
Laers |
1~32 |
Board thickness |
0.1mm-7.0mm |
Material |
FR-4,CEM-1/CEM-3,PI,High Tg,Rogers |
Max panel size |
32"×48"(800mm×1200mm) |
Min hole size |
0.075mm |
Min line width |
3mil(0.075mm) |
Surface finish |
OSP,HASL,Imm Gold/Nickel/Ag, Electric gold |
Copper thickness |
0.5-7.0OZ |
Soldermask |
Green/Yellow/Black/White/Red/Blue |
Silkscreen |
Red/Yellow/Black/White |
Min PAD |
5mil(0.13mm) |
Inter package |
Vacuum |
Outer package |
Carton |
Outline tolerance |
±0.75mm |
Hole tolerance |
PTH:±0.05 NPTH:±0.025 |
Certificate |
UL,ISO 9001,ISO14001,IATF16949 |
Special request |
Blind hole+Gold finger + BGA |
Material Suppilers |
Shengyi, KB, Nanya, ITEQ,etc. |
