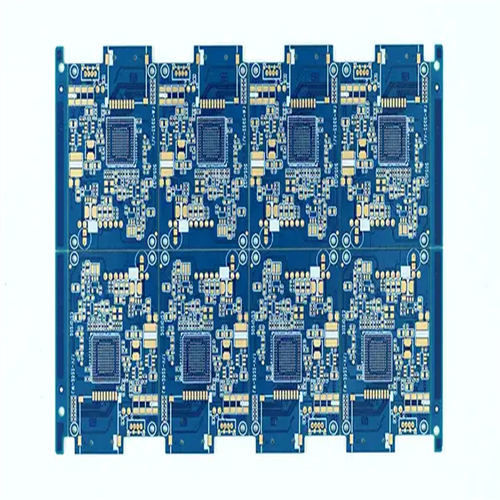

1.5mm Low CTE TG170 PCB Board Fabrication And Assembly Lead Free

1.5mm Low CTE TG170 PCB Board Fabrication And Assembly Lead Free

MOQ: 1
Price: Send us Gerber file for free quotation
Payment Terms: T/T
Detail Information
Layer:
8 Layer
Material:
FR4 Tg170
Board Thickness:
1.5mm
Copper Thickness:
2OZ
Board Size:
Customized
Min. Line Width/Space:
0.10/0.10mm
Surface Treatment:
ENIG/OSP
Certificate:
UL,IATF16949,ISO&Reach
Highlight:

Low CTE pcb board fabrication

,

1.5mm pcb board fabrication

,

TG170 pcb fabrication and assembly

Product Description

Lead Free Low CTE High Tg PCB Suitable for A Variety Of Extreme Environments



What's High-Tg?



Tg refers to the glass transition temperature. When the substrate is exposed to high temperatures, it will change from a glass state to a rubber state. High Tg PCB refers to a circuit board that can withstand higher temperatures without deforming or turning into rubber. Materials with a glass transition temperature above 170°C are usually classified as high Tg PCBs, those above 150°C are mid-range Tg PCBs, and those above 130°C are low Tg PCBs.



1.5mm Low CTE TG170 PCB Board Fabrication And Assembly Lead Free 0 1.5mm Low CTE TG170 PCB Board Fabrication And Assembly Lead Free 1 1.5mm Low CTE TG170 PCB Board Fabrication And Assembly Lead Free 2





♦ Advantages of High Tg PCB

    • Improve product reliability: Stable physical and electrical performance in extreme environments, suitable for fields with high reliability requirements such as aerospace, automotive electronics, etc.
    • ​​Extend service life: Resistant to moisture and chemical corrosion, reduce maintenance costs, and bring economic benefits.
    • ​​Adapt to lead-free process: Can remain stable at higher welding temperatures, which is conducive to improving production efficiency and product quality.
    • ​​Support high-density interconnection technology: Meet the needs of miniaturization and lightweight of modern electronic equipment, making PCB design more refined and layout more compact.



♦ Application fields of High-Tg PCB

    • Communication field: widely used in wireless base stations, optical fiber communications, satellite communications and other equipment, supporting high-speed signal transmission, adapting to high temperature and high frequency environments, and ensuring stable operation of communication networks.
    • Automotive field: used in vehicle computers, engine control units, new energy battery management systems, etc., to withstand high temperatures, vibrations and complex environments, and improve the reliability of automotive electronic systems.
    • Industrial field: suitable for industrial automation equipment, PLCs, converters, etc., can work stably in high temperature, high humidity, and strong vibration environments, ensuring long-term and reliable operation of industrial equipment.



Technical Parameters



Item

Specification

Laers

1~32

Board thickness

0.1mm-7.0mm

Material

FR-4,CEM-1/CEM-3,PI,High Tg,Rogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSP,HASL,Imm Gold/Nickel/Ag, Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH:±0.05 NPTH:±0.025

Certificate

UL,ISO 9001,ISO14001,IATF16949

Special request

Blind hole+Gold finger  + BGA

Material Suppilers

 Shengyi, KB, Nanya, ITEQ,etc.




One-Stop PCBs Solution



1.5mm Low CTE TG170 PCB Board Fabrication And Assembly Lead Free 3 1.5mm Low CTE TG170 PCB Board Fabrication And Assembly Lead Free 4 1.5mm Low CTE TG170 PCB Board Fabrication And Assembly Lead Free 5 1.5mm Low CTE TG170 PCB Board Fabrication And Assembly Lead Free 6
PCB Prototype Felx PCB  Rigid-Flex PCB Aluminium PCB
1.5mm Low CTE TG170 PCB Board Fabrication And Assembly Lead Free 7 1.5mm Low CTE TG170 PCB Board Fabrication And Assembly Lead Free 8 1.5mm Low CTE TG170 PCB Board Fabrication And Assembly Lead Free 9 1.5mm Low CTE TG170 PCB Board Fabrication And Assembly Lead Free 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB






Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
