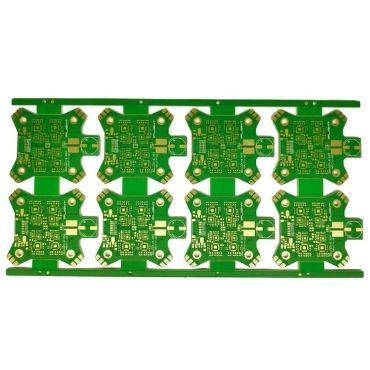

1.5mm FR4 UL 94V0 PCB HDI Circuit Board For Power Electronic Automotive

1.5mm FR4 UL 94V0 PCB HDI Circuit Board For Power Electronic Automotive

MOQ: 1
Price: Contact Us
Payment Terms: T/T
Supply Ability: 200,000+ m² PCB per Month
Detail Information
Layer:
6 Layers
Material:
FR4
Thickness:
1.5 Mm
Construction:
2+N+2
Min. Line Width/Space:
0.1/0.1mm
Surface Treatment:
Immersion Gold
Type:
Customizable
Application:
Power Electronic
Standard:
UL&IPC Standard &ISO
Supply Ability:
200,000+ m² PCB per Month
Highlight:

1.5mm 94v0 pcb

,

HDI 94v0 pcb

,

HDI 94v0 fr4

Product Description



High Quality 94V0 HDI Circuit Board for Power Electronic





♦ What is 94V0 PCB?



A ​​94V0 PCB​​ refers to a ​​printed circuit board (PCB)​​ that meets the ​​UL 94V-0 flammability standard​​, meaning it has high fire resistance and self-extinguishing properties. This rating is crucial for ensuring safety in electronic devices, particularly those used in high-temperature or high-risk environments.





1.5mm FR4 UL 94V0 PCB HDI Circuit Board For Power Electronic Automotive 0 1.5mm FR4 UL 94V0 PCB HDI Circuit Board For Power Electronic Automotive 1 1.5mm FR4 UL 94V0 PCB HDI Circuit Board For Power Electronic Automotive 2







♦ Key Features of a 94V0 PCB:​

    1. ​​Flame Resistance​​

      • When exposed to fire, a 94V0 PCB will ​​stop burning within 10 seconds​​ after the flame is removed.
      • It does ​​not drip flaming particles​​ that could spread fire.
    2. ​​Material Composition​​

      • The PCB substrate (usually ​​FR-4​​) is treated with flame-retardant additives (e.g., brominated compounds) to achieve the 94V0 rating.
      • The copper layers and solder mask do not significantly affect the flammability rating.
    3. ​​Compliance with UL 94 Standard​​

      • UL 94 is a ​​safety certification​​ by Underwriters Laboratories (UL) for plastic materials used in devices.
      • ​​V0​​ is the highest vertical burn rating (others include V1, V2, HB).
    4. ​​Applications​​

      • Used in ​​high-power electronics​​, power supplies, automotive systems, industrial controls, and consumer electronics where fire safety is critical.
      • Often required for ​​safety certifications​​ (e.g., CE, RoHS, UL).



♦ Why is 94V0 Important for PCBs?​

    • Prevents fires in case of electrical faults or overheating.
    • Meets ​​international safety standards​​ for electronics.
    • Reduces risk in applications like power adapters, LED lighting, and medical devices.





Technical Parameters



Item

Spec

Layers

1~64

Board Thickness

0.1mm-10 mm

Material

FR-4, CEM-1/CEM-3, PI, High Tg, Rogers, PTEF, Alu/Cu Base,Ceramic, etc

Max Panel Size

800mm×1200mm

Min Hole Size

0.075mm

Min Line Width/Space

Standard: 3mil(0.075mm)  Advance: 2mil

Board Outline Tolerance

士0.10mm

Insulation Layer Thickness

0.075mm--5.00mm

Out Layer Copper Thickness

18um--350um

Drilling Hole (Mechanical)

17um--175um

Finish Hole (Mechanical)

17um--175um

Diameter Tolerance (Mechanical)

0.05mm

Registration (Mechanical)

0.075mm

Aspect Ratio

17:01

Solder Mask Type

LPI

SMT Min. Solder Mask Width

0.075mm

Min. Solder Mask Clearance

0.05mm

Plug Hole Diameter

0.25mm--0.60mm







One-Stop PCBs Solution



1.5mm FR4 UL 94V0 PCB HDI Circuit Board For Power Electronic Automotive 3 1.5mm FR4 UL 94V0 PCB HDI Circuit Board For Power Electronic Automotive 4 1.5mm FR4 UL 94V0 PCB HDI Circuit Board For Power Electronic Automotive 5 1.5mm FR4 UL 94V0 PCB HDI Circuit Board For Power Electronic Automotive 6
PCB Prototype Felx PCB  Rigid-Flex PCB Ceramic PCB
1.5mm FR4 UL 94V0 PCB HDI Circuit Board For Power Electronic Automotive 7 1.5mm FR4 UL 94V0 PCB HDI Circuit Board For Power Electronic Automotive 8 1.5mm FR4 UL 94V0 PCB HDI Circuit Board For Power Electronic Automotive 9 1.5mm FR4 UL 94V0 PCB HDI Circuit Board For Power Electronic Automotive 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB





Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
