1-108 Layer Rigid Fr4 Quick Turn PCB Assembly Production Companies

1-108 Layer Rigid Fr4 Quick Turn PCB Assembly Production Companies

1-108 Layer Rigid Fr4 Quick Turn PCB Assembly Production Companies

MOQ: 1
Price: Send us Gerber file for free quotation
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Layer:
1-108 Layer
Material:
Fr4
Thickness:
0.5-10.0mm
Min. Line Width/Space:
0.1/0.1mm
Copper Thickness:
0.5-15OZ
Surface Treatment:
Immersion Gold
Application:
Electronic
Certificate:
UL & IPC Standard & ISO
Highlight:

Rigid quick turn pcb assembly

,

Fr4 quick turn pcb assembly

,

Fr4 pcb production and assembly

Product Description



1-108 Layer Rigid Fr4 PCB Manufacturing Companies



♦ What's Fr4 PCB?



​​FR4 PCB​​ refers to a printed circuit board (PCB) made with ​​FR4 material​​, the most widely used substrate in electronics manufacturing.

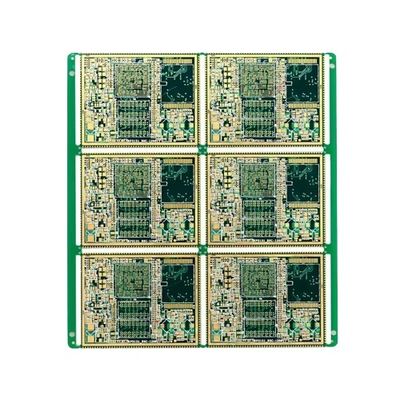

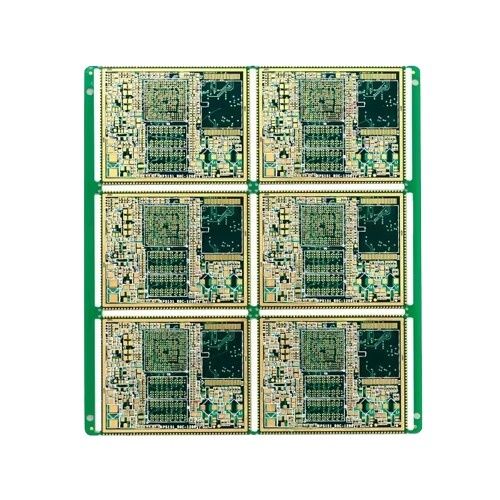

1-108 Layer Rigid Fr4 Quick Turn PCB Assembly Production Companies 0 1-108 Layer Rigid Fr4 Quick Turn PCB Assembly Production Companies 1 1-108 Layer Rigid Fr4 Quick Turn PCB Assembly Production Companies 2





♦ ​​​​Key Features of FR4 PCB:​



    1. ​​Material Composition​​

      • ​​FR4​​ stands for ​​Flame Retardant 4​​, indicating its fire-resistant properties.
      • Made of ​​fiberglass-reinforced epoxy laminate​​, providing strength and durability.

    2. ​​Electrical & Mechanical Properties​​

      • ​​Good Insulation​​ – High dielectric strength prevents electrical leakage.
      • ​​Thermal Resistance​​ – Can withstand temperatures up to ​​130–140°C​​ (higher for specialized variants).
      • ​​Mechanical Strength​​ – Rigid and sturdy, suitable for most PCB applications.

    3. ​​Common Applications​​

      • Consumer electronics (smartphones, laptops, TVs)
      • Industrial control systems
      • Automotive electronics
      • Medical devices
      • IoT and embedded systems

♦ ​​​​Advantages of FR4 PCB:​



✅ ​​Cost-effective​​ – Cheaper than high-frequency or ceramic PCBs.
✅ ​​Versatile​​ – Works for most standard electronic applications.
✅ ​​Durable​​ – Resists moisture, heat, and mechanical stress.
✅ ​​Easy to Manufacture​​ – Widely available and compatible with standard PCB fabrication processes.





♦ Technical Parameters



Item

Specification

Laers

1~64

Board thickness

0.1mm-7.0mm

Material

FR-4,CEM-1/CEM-3,PI,High Tg,Rogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSP,HASL,Imm Gold/Nickel/Ag, Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH:±0.05 NPTH:±0.025

Certificate

UL,ISO 9001,ISO14001,IATF16949

Special request

Blind hole+Gold finger  + BGA

Material Suppilers

 Shengyi, KB, Nanya, ITEQ,etc.




♦ One-Stop PCBs Solution



1-108 Layer Rigid Fr4 Quick Turn PCB Assembly Production Companies 3 1-108 Layer Rigid Fr4 Quick Turn PCB Assembly Production Companies 4 1-108 Layer Rigid Fr4 Quick Turn PCB Assembly Production Companies 5 1-108 Layer Rigid Fr4 Quick Turn PCB Assembly Production Companies 6
PCB Prototype Felx PCB  Rigid-Flex PCB Aluminium PCB
1-108 Layer Rigid Fr4 Quick Turn PCB Assembly Production Companies 7 1-108 Layer Rigid Fr4 Quick Turn PCB Assembly Production Companies 8 1-108 Layer Rigid Fr4 Quick Turn PCB Assembly Production Companies 9 1-108 Layer Rigid Fr4 Quick Turn PCB Assembly Production Companies 10
Heavy Copper PCB HDI PCB High Frequency PCB  High TG PCB





♦ Advantages of DQS Team

  1. On-time Delivery:
    • Owned PCBA factories 15,000㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
