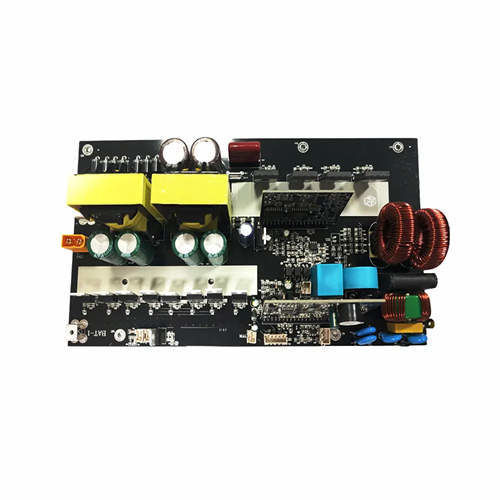

12 Layer FR4 Tg180 SMT Industrial Control PCB Assembly And Fabrication

12 Layer FR4 Tg180 SMT Industrial Control PCB Assembly And Fabrication

MOQ: 1
Payment Terms: T/T
Supply Ability: Post-soldering 700,000 points/day
Detail Information
Certification:
ISO, UL, IPC, Reach
Layer:
12 Layer
Material:
FR4 Tg180
Thickness:
2.0mm
Pin Space:
0.15mm
Min. Component Size:
0201
Min. Hole Size:
0.1mm
Assembly Process:
SMT
Application:
Industrial Engine Control System
Supply Ability:
Post-soldering 700,000 points/day
Highlight:

FR4 industrial control pcb assembly

,

Tg180 industrial control pcb assembly

,

Tg180 pcb fabrication and assembly

Product Description



Durable and Stable Industrial PCBA SMT Assembly Industrial Engine Control System





♦ What Is Industrial Control PCBA?



Industrial control PCBA (Printed Circuit Board Assembly) is a circuit board assembly designed for industrial automation scenarios, which is equivalent to the "brain" of industrial equipment. It integrates processors (such as ARM, DSP), sensor interfaces, communication modules (such as CAN, EtherCAT), actuator drive circuits, etc., to achieve accurate monitoring and control of industrial production processes (such as mechanical movement, temperature control, data acquisition, etc.).





Features of Industrial Control PCBA:

  • Resistant and durable: can adapt to high temperature, humidity, electromagnetic interference and other harsh industrial environments, strong stability.
  • Accurate and fast: high control accuracy and fast response speed to ensure efficient operation of production lines and equipment.



♦ Applications:

  • ​​Manufacturing Automation​​: Automotive welding/assembly robots, electronic SMT placement machines, food packaging equipment, etc., to achieve high-precision production.
  • ​​Robots​​: Industrial robotic arms, AGV carts, collaborative robots, etc., to control movement and interaction.
  • ​​Energy and Power​​: Wind power/photovoltaic inverters, power grid monitoring, energy storage battery management (BMS), etc.
  • ​​Petrochemical/Metallurgy​​: Pumping units, reactor controls, rolling mill equipment, etc., to adapt to high temperature and high pressure environments.



♦ Technical Parameters



 PCB Assembly Capability



Item



                  Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L<2mm

Maximum

L≤800mmW≤460mm

L > 1200mmW>500mm

Thickness( T)

Thinnest

0.2mm

T<0.1mm

Thickest

4 mm

T>4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm<T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch<0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch<0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L<50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mmW≥500mm

Thickness( T)

Thinnest

0.8mm

T<0.8mm

Thickest

3.5mm

                      T>2mm









♦ One-Stop PCBA Solution



12 Layer FR4 Tg180 SMT Industrial Control PCB Assembly And Fabrication 0 12 Layer FR4 Tg180 SMT Industrial Control PCB Assembly And Fabrication 1 12 Layer FR4 Tg180 SMT Industrial Control PCB Assembly And Fabrication 2 12 Layer FR4 Tg180 SMT Industrial Control PCB Assembly And Fabrication 3
PCBA Prototype Industrial Control PCBA Telecom PCBA Medical PCBA
12 Layer FR4 Tg180 SMT Industrial Control PCB Assembly And Fabrication 4 12 Layer FR4 Tg180 SMT Industrial Control PCB Assembly And Fabrication 5 12 Layer FR4 Tg180 SMT Industrial Control PCB Assembly And Fabrication 6 12 Layer FR4 Tg180 SMT Industrial Control PCB Assembly And Fabrication 7
Automotive PCBA Consumer Electronic PCBA LED PCBA  Security PCBA






♦ Advantages of DQS Team

  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
