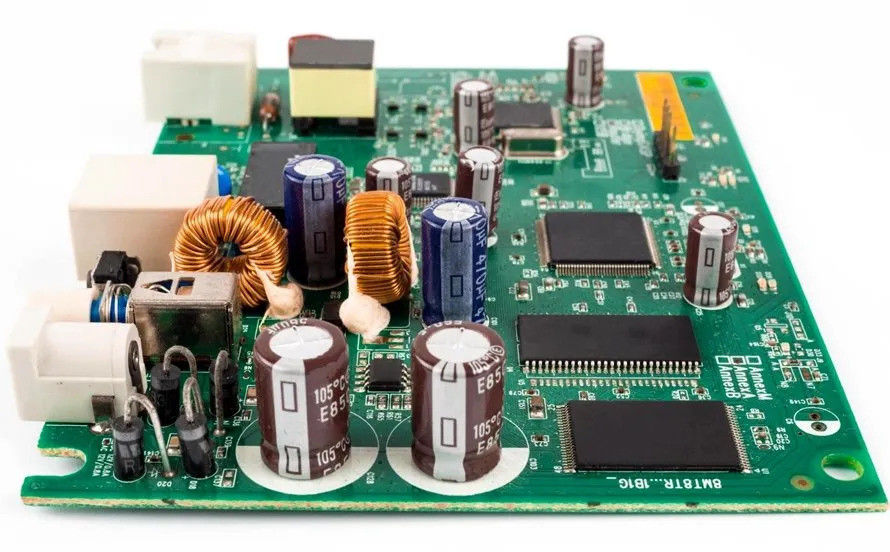

0.5oz-15oz OSP Wireless Charger PCBA Through Hole Soldering PCB Board Assembly

0.5oz-15oz OSP Wireless Charger PCBA Through Hole Soldering PCB Board Assembly

0.5oz-15oz OSP Wireless Charger PCBA Through Hole Soldering PCB Board Assembly

MOQ: 1
Price: Contact us
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Base Material:
FR-4,CEM-3,Aluminum,CEM-1 OR FR-4,Alum
Copper Thickness:
0.5-15OZ
Min. Line Spacing:
2-3mil
Board Thickness:
0.2-10mm
Min. Line Width:
2-3mil
Min. Hole Size:
0.1mm
Surface Finishing:
HASL,OSP,ENIG,HASL Lead Free,Immersion Gold
Solder Mask Color:
Green Black Red,Blue.green.red.black.white.etc
PCB Test:
Flying Probe And AOI (Default)/Fixture Test,Flying-Probe PCB Test
Pcb Assembly Method:
Mixed,BGA,SMT,Through-hole
Highlight:

0.5oz wireless charger pcba

,

OSP wireless charger pcba

,

OSP soldering pcb board

Product Description



Intelligent Electronic Large Size Components Through-hole Assembly



♦ What is Through-Hole Assembly?



Through-Hole Assembly is the traditional way of installing electronic components: the component pins are inserted into the pre-drilled holes in the PCB and then fixed by soldering to achieve electrical connection.





♦ Features of Through-Hole Assembly?



    • ​​Component Leads:​​ Components have long, sturdy leads that pass through holes in the PCB.
    • ​​Soldering:​​ Leads are soldered to conductive pads on the opposite side (wave soldering or hand soldering).
    • ​​Mechanical Strength:​​ Provides strong physical bonds, making it ideal for high-stress environments.
    • ​​Reliability:​​ Better thermal and mechanical durability than SMT in some applications.
    • ​​Larger Components:​​ Often used for bulky parts like connectors, transformers, and electrolytic capacitors.



♦ Technical Parameters



 PCB Assembly Capability



Item



                  Normal



 Special

















SMT

Assembly





PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm,  W≥3mm

L＜2mm

Maximum

L≤800mm, W≤460mm

L ＞ 1200mm, W＞500mm

Thickness( T)

Thinnest

0.2mm

T＜0.1mm

Thickest

4 mm

T＞4.5mm



SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm＜T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch＜0.4mm

CSP/ BGA

   Min ball space

0.5mm

0.3mm≤Pitch＜0.5mm





DIP

Assembly



PCB specification



Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L＜50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mm, W≥500mm

Thickness( T)

Thinnest

0.8mm

T＜0.8mm

Thickest

3.5mm

                      T＞2mm









♦ One-Stop PCBA Solution



0.5oz-15oz OSP Wireless Charger PCBA Through Hole Soldering PCB Board Assembly 0 0.5oz-15oz OSP Wireless Charger PCBA Through Hole Soldering PCB Board Assembly 1 0.5oz-15oz OSP Wireless Charger PCBA Through Hole Soldering PCB Board Assembly 2 0.5oz-15oz OSP Wireless Charger PCBA Through Hole Soldering PCB Board Assembly 3
PCBA Prototype Industrial Control PCBA Telecom PCBA Medical PCBA
0.5oz-15oz OSP Wireless Charger PCBA Through Hole Soldering PCB Board Assembly 4 0.5oz-15oz OSP Wireless Charger PCBA Through Hole Soldering PCB Board Assembly 5 0.5oz-15oz OSP Wireless Charger PCBA Through Hole Soldering PCB Board Assembly 6 0.5oz-15oz OSP Wireless Charger PCBA Through Hole Soldering PCB Board Assembly 7
Automotive PCBA Consumer Electronic PCBA LED PCBA  Security PCBA






♦ Advantages of DQS Team

  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines



     2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%



     3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
